GQA2W010A120V-007-R - TDK Lambda

Description: DC-DC Converters, Power module type (with baseplate), Output: 120W, 12V, Isolated type, Option: Flanged baseplate, Negative logic ON/OFF control

Download GQA2W010A120V-007-R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

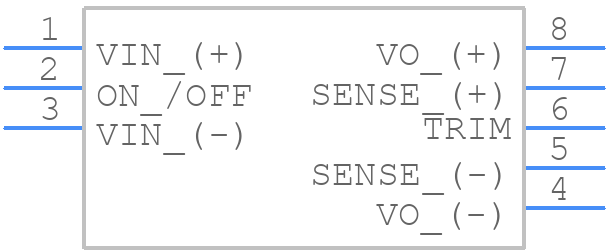

Symbol
GQA2W010A120V-007-R - TDK Lambda - PCB symbol
click to zoom

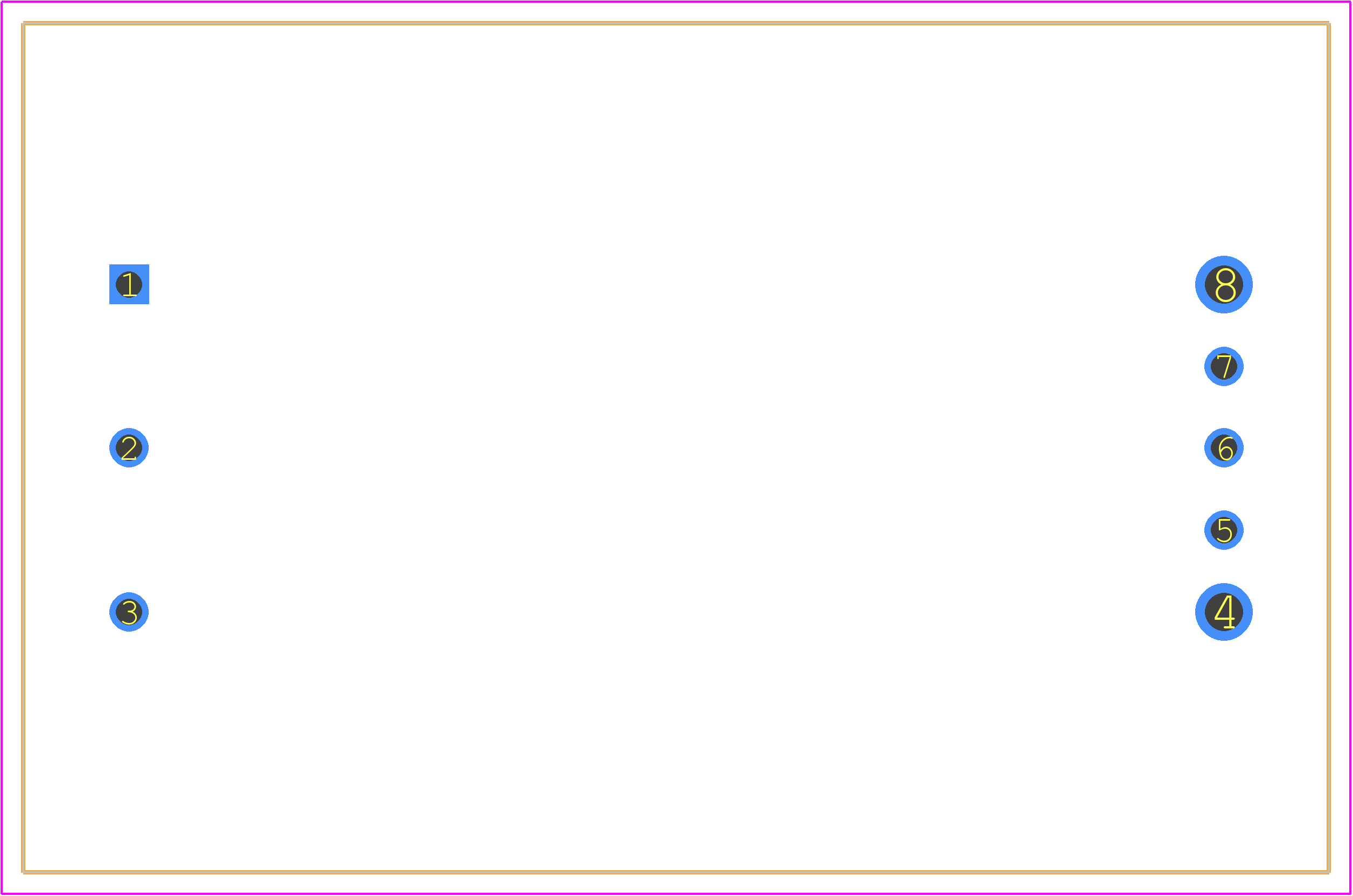

PCB Footprints
GQA2W010A120V-007-R - TDK Lambda PCB footprint - Other - Other - GQA2W010A120V-007-R-2
click to zoom
3D Models
GQA2W010A120V-007-R - TDK Lambda - 3D model - Other - GQA2W010A120V-007-R-2
click to zoom

GQA2W010A120V-007-R Details

  • Manufacturer Part Number:

    GQA2W010A120V-007-R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • Manufacturer:

    TDK-Lambda Corporation

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    9 V

  • JESD-30 Code:

    R-XDFM-X8

  • Load Regulation-Max:

    0.03%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    13.2 V

  • Output Voltage-Min:

    10.8 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    120 W

  • Trim/Adjustable Output:

    YES

GQA2W010A120V-007-R Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the GQA2W010A120V-007-R is -40°C to +85°C, with derating above 60°C.
  • Yes, the GQA2W010A120V-007-R is designed to withstand high-vibration environments, with a vibration test specification of 10-2000Hz, 2G acceleration.
  • The typical efficiency of the GQA2W010A120V-007-R is around 85%, depending on the input voltage and output load conditions.
  • Yes, the GQA2W010A120V-007-R is designed to be used in redundant configurations, with features such as parallel operation and hot-swap capability.
  • The MTBF rating for the GQA2W010A120V-007-R is around 1.5 million hours, calculated according to MIL-HDBK-217F.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

GQA2W010A120V-007-R Overview

Use the download button to access the GQA2W010A120V-007-R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like GQA2W, or try a keyword search, such as Power Supply Modules
