GQA2W024A050V-0P7-R - TDK Lambda

Description: DC-DC Converters, Power module type (with baseplate), Output: 120W, 5V, Isolated type, Option: Flanged baseplate, Negative logic ON/OFF control, Case & Potting 3kV isolation

Download GQA2W024A050V-0P7-R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

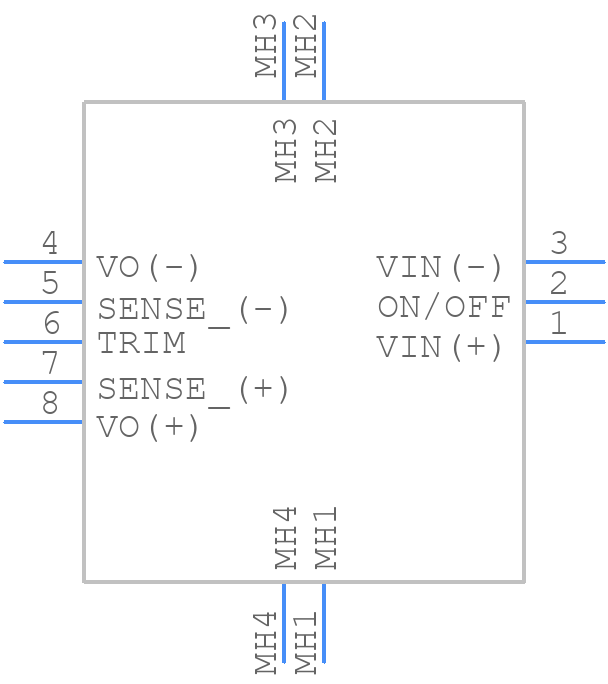

GQA2W024A050V-0P7-R - TDK Lambda - PCB symbol
click to zoom
PCB Footprints

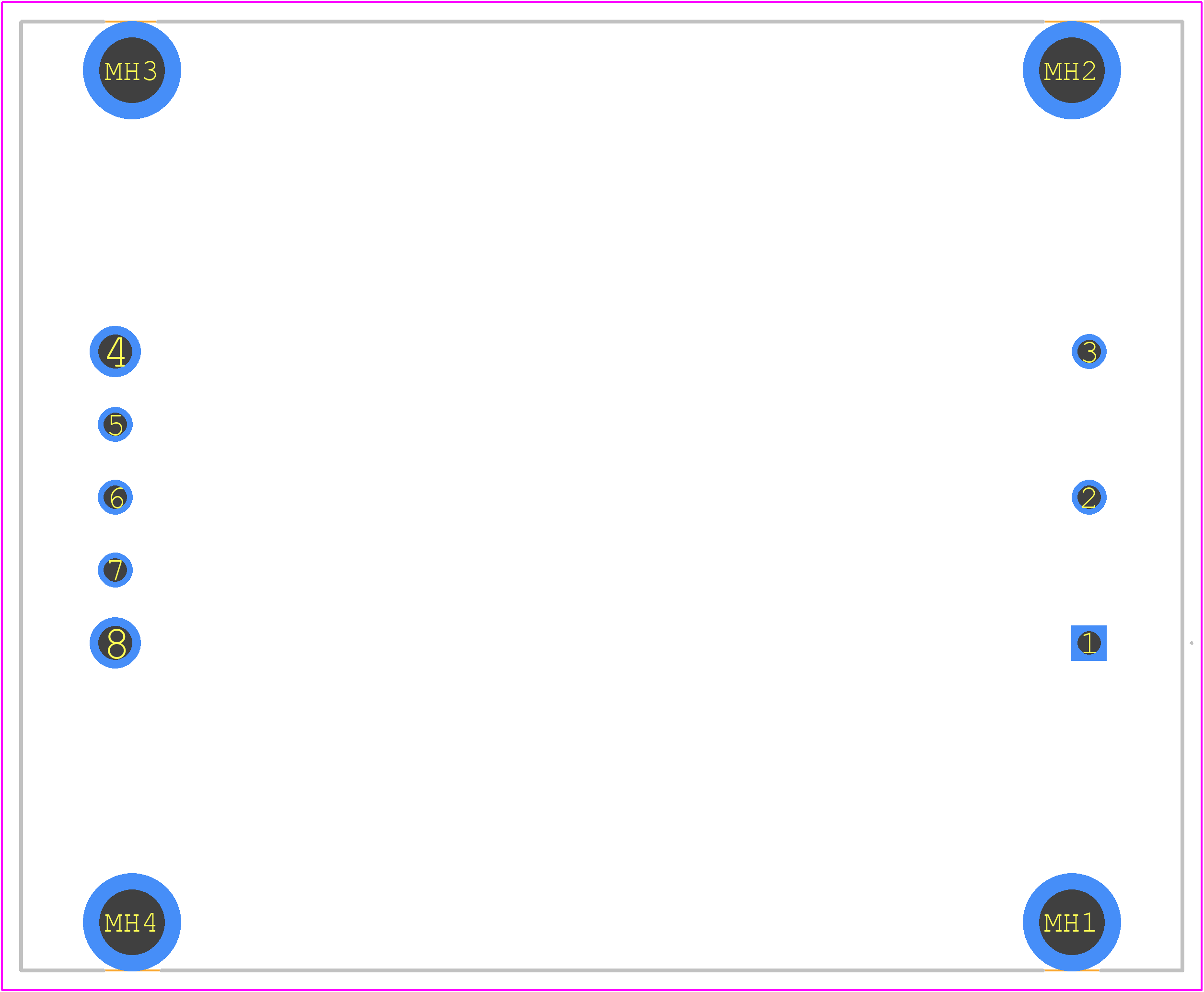

GQA2W024A050V-0P7-R - TDK Lambda PCB footprint - Other - Other - GQA2W024A050V-0P7-R-1
click to zoom
3D Models
GQA2W024A050V-0P7-R - TDK Lambda - 3D model - Other - GQA2W024A050V-0P7-R-1
click to zoom

GQA2W024A050V-0P7-R Details

  • Manufacturer Part Number:

    GQA2W024A050V-0P7-R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • Manufacturer:

    TDK-Lambda Corporation

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

GQA2W024A050V-0P7-R Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the GQA2W024A050V-0P7-R is -40°C to +85°C, with derating above 60°C.
  • Yes, the GQA2W024A050V-0P7-R is designed to operate in humid environments, with a relative humidity of up to 95% non-condensing.
  • The MTBF rating for the GQA2W024A050V-0P7-R is approximately 2.5 million hours at 25°C, calculated according to MIL-HDBK-217F.
  • Yes, the GQA2W024A050V-0P7-R meets the requirements for medical applications, including EN 60601-1 and IEC 60601-1-2.
  • Yes, the GQA2W024A050V-0P7-R is designed to withstand vibration up to 10G peak acceleration, 5-500Hz, in accordance with IEC 60068-2-6.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

GQA2W024A050V-0P7-R Overview

Use the download button to access the GQA2W024A050V-0P7-R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like GQA2W, or try a keyword search, such as Power Supply Modules
