GRF1-J-P-08-E-RA-TH1 footprint, schematic symbol and 3D model by SAMTEC

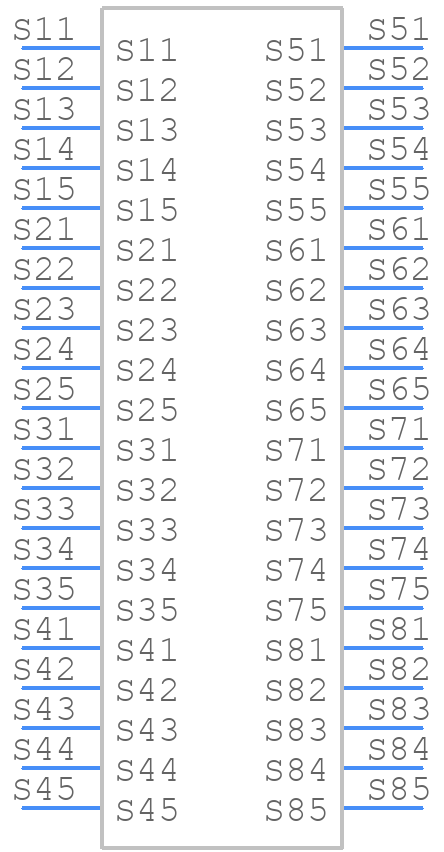

Symbol

click to zoom

PCB Footprints

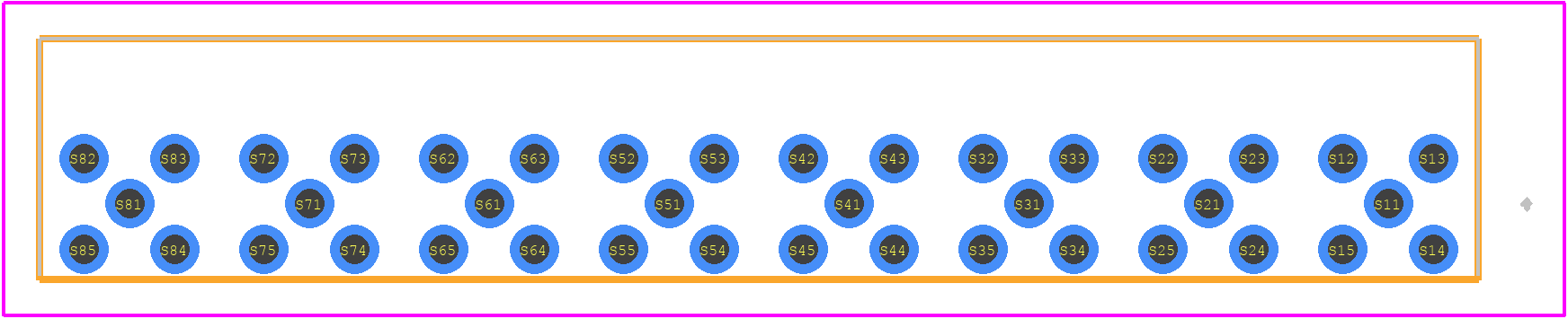

GRF1-J-P-08-E-RA-TH1 - SAMTEC PCB footprint - Other - Other - GRF1-J-P-08-E-RA-TH1-4

click to zoom

3D Models

GRF1-J-P-08-E-RA-TH1 - SAMTEC - 3D model - Other - GRF1-J-P-08-E-RA-TH1-4

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for GRF1-J-P-08-E-RA-TH1
Part Number GRF1-J-P-08-E-RA-TH1
Manufacturer SAMTEC
Pin Count 40
Part Category Connector
Package Category Other
Footprint Name Other - GRF1-J-P-08-E-RA-TH1-4
Released Date Feb 1, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

GRF1-J-P-08-E-RA-TH1 Details

Manufacturer Part Number:
GRF1-J-P-08-E-RA-TH1
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
Mainland China, Malaysia
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
1 Week
Manufacturer:
Samtec Inc
Body/Shell Style:
JACK
Characteristic Impedance:
50 Ω
Connector Type:
RF CONNECTOR
Contact Finish Mating:
GOLD (50) OVER NICKEL (50)
Contact Gender:
FEMALE
Coupling Type:
THREADED
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
POLYTETRAFLUOROETHYLENE
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Operating Frequency-Max:
6 GHz
Option:
GENERAL PURPOSE
Panel Mount:
NO
Termination Type:
SOLDER

GRF1-J-P-08-E-RA-TH1 Frequently Asked Questions (FAQs)

The recommended mating sequence is to mate the connectors in a perpendicular orientation, ensuring the guide pins are aligned, and then rotate the connectors into their final mated position.
To ensure reliable connections, make sure to follow proper termination techniques, use the recommended torque values, and inspect the connectors for any signs of damage or wear before mating.
The maximum operating temperature range for the GRF1-J-P-08-E-RA-TH1 connector is -55°C to +125°C, but it's essential to consult the datasheet and relevant application notes for specific temperature ratings and derating factors.
Yes, the GRF1-J-P-08-E-RA-TH1 connector is designed to withstand high-vibration environments, but it's crucial to follow proper mounting and securing techniques to ensure the connector remains securely fastened.
Samtec recommends using a soft, dry brush or a lint-free cloth to remove any debris or contaminants from the connector. Avoid using harsh chemicals, abrasive materials, or excessive force, which can damage the connector.

Trust Checks

Expert Contribution

System Verified

Community Approved

GRF1-J-P-08-E-RA-TH1 Overview

Use the download button to access the GRF1-J-P-08-E-RA-TH1 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like GRF1-, or try a keyword search, such as Other RF Connectors
