GRF2012 - Guerrilla RF

Description: RF Amplifier .05-6GHz NF 1.9dB Gain 15dB OIP3 40dB

Download GRF2012 Model

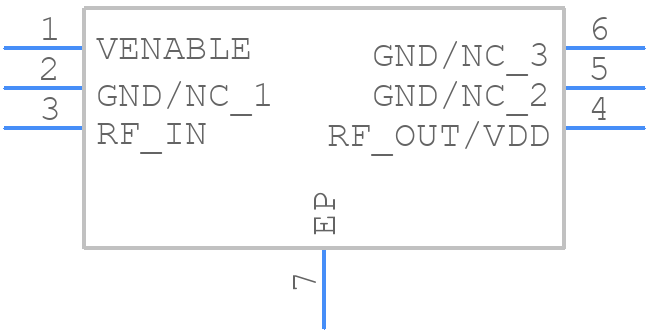

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
GRF2012 - Guerrilla RF PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN6 1.5mm x 1.5mm.....
click to zoom

GRF2012 Details

  • Manufacturer Part Number:

    GRF2012

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    DFN-6

  • Manufacturer:

    Guerrilla RF

  • Additional Feature:

    LOW NOISE

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    13.8 dB

  • Input Power-Max (CW):

    22 dBm

  • Operating Frequency-Max:

    6000 MHz

  • Operating Frequency-Min:

    50 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    WIDE BAND MEDIUM POWER

  • VSWR-Max:

    2

GRF2012 Frequently Asked Questions (FAQs)

  • Guerrilla RF recommends a 4-layer PCB with a solid ground plane, and thermal vias under the package to dissipate heat. A thermal pad on the bottom of the package should be connected to a thermal plane on the PCB.
  • Use a combination of simulation tools and empirical methods to optimize the input and output matching networks. Start with a theoretical match using a Smith chart, and then iterate using a network analyzer and a prototype board to achieve optimal performance.
  • Operate the GRF2012 within the recommended temperature range of -40°C to 85°C, and ensure a maximum junction temperature of 150°C. Avoid exceeding the maximum ratings for voltage, current, and power dissipation.
  • Use a shielded enclosure, and ensure proper grounding and bonding of the PCB and components. Implement EMI filtering on the input and output lines, and use a common-mode choke to reduce emissions.
  • Use a vector network analyzer to measure S-parameters, and a spectrum analyzer to measure output power and spectral purity. Use a load pull system to characterize the device under various load conditions.
