GRF2014 - Guerrilla RF

Description: RF Amplifier .05-3.8GHz GaAs Gain 15.9dB

Download GRF2014 Model

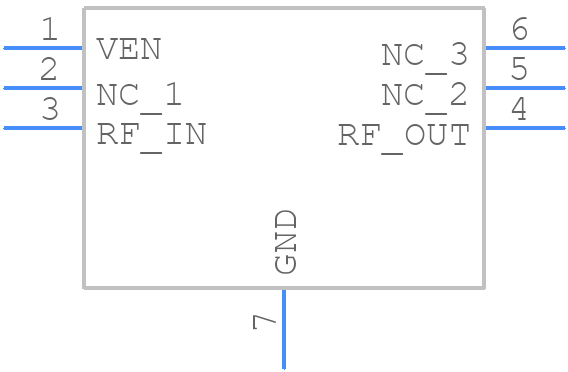

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
GRF2014 - Guerrilla RF PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN-6(H=0.5mm)
click to zoom
3D Models
GRF2014 - Guerrilla RF  - 3D model - Small Outline No-lead - DFN-6(H=0.5mm)
click to zoom

GRF2014 Details

  • Manufacturer Part Number:

    GRF2014

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    DFN-6

  • Manufacturer:

    Guerrilla RF

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    14.9 dB

  • Input Power-Max (CW):

    21 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    3800 MHz

  • Operating Frequency-Min:

    50 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC6,.06,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    WIDE BAND MEDIUM POWER

  • Surface Mount:

    YES

  • Technology:

    PHEMT

  • VSWR-Max:

    2

GRF2014 Frequently Asked Questions (FAQs)

  • Guerrilla RF recommends a 4-layer PCB with a solid ground plane, and thermal vias under the package to dissipate heat. A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to improve heat dissipation.
  • Use a combination of simulation tools and empirical methods to optimize the input and output matching networks. Start with a theoretical match using simulation tools, and then iterate with empirical measurements to achieve optimal performance.
  • Operate the GRF2014 within the recommended temperature range of -40°C to 85°C, and ensure that the device is not exposed to moisture or humidity. Follow proper handling and storage procedures to prevent damage.
  • Use a combination of simulation tools, oscilloscopes, and spectrum analyzers to troubleshoot issues. Check for proper biasing, decoupling, and layout, and ensure that the amplifier is properly terminated and matched.
  • Use a vector network analyzer (VNA) to measure S-parameters, and a spectrum analyzer to measure gain, noise figure, and output power. Follow proper calibration and measurement procedures to ensure accurate results.
