Guerrilla RF recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to improve heat dissipation.
Guerrilla RF provides a set of recommended matching networks in the application notes. However, the optimal matching network may vary depending on the specific application and frequency band. Engineers can use simulation tools such as ADS or AWR to optimize the matching networks for their specific use case.
The GRF2201 is rated for operation from -40°C to 85°C. However, the device can be operated at temperatures up to 105°C with reduced performance and reliability.
Guerrilla RF recommends following the recommended biasing scheme outlined in the datasheet. The device should be biased using a high-impedance voltage source, and the voltage should be set to the recommended value to ensure optimal performance.
Guerrilla RF recommends using a TVS diode or a spark gap ESD protection device to protect the GRF2201 from electrostatic discharge. The ESD protection device should be placed as close to the device as possible to ensure effective protection.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
GRF2201 Overview

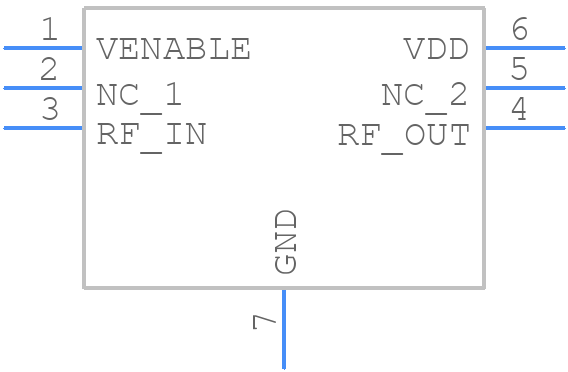

Use the download button to access the GRF2201 schematic symbol, PCB footprint, and 3D model.
