Guerrilla RF recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to improve heat dissipation.
Guerrilla RF provides a set of recommended matching networks in the datasheet, but these may need to be optimized for specific frequencies, impedances, and applications. Engineers can use simulation tools like ADS or AWR to optimize the matching networks for their specific use case.
The GRF4005 is rated for operation from -40°C to +125°C, but the device may be derated for high-temperature operation. Engineers should consult the datasheet and Guerrilla RF's application notes for more information on temperature derating.
The GRF4005 requires a specific bias voltage and current to operate optimally. Engineers should consult the datasheet and Guerrilla RF's application notes for recommended biasing schemes and voltage/current levels.
The GRF4005 is a sensitive device and requires proper ESD protection and handling to prevent damage. Engineers should follow standard ESD handling procedures, such as using wrist straps, anti-static bags, and ESD-safe workstations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
GRF4005 Overview

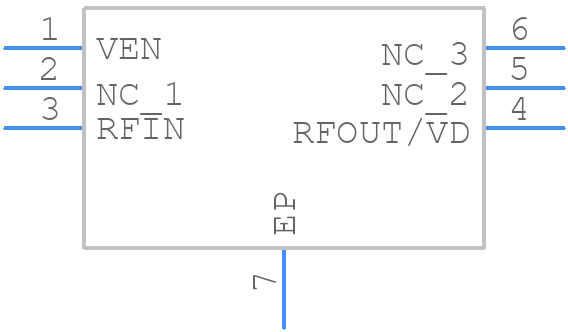

Use the download button to access the GRF4005 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like GRF40,
or try a keyword search, such as Other Telecom ICs
