GRM55DR72D474KW01L - Murata Electronics

Description: Capacitor GRM55 L=5.7mm W=5.0mm T=2.0mm

Download GRM55DR72D474KW01L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
GRM55DR72D474KW01L - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

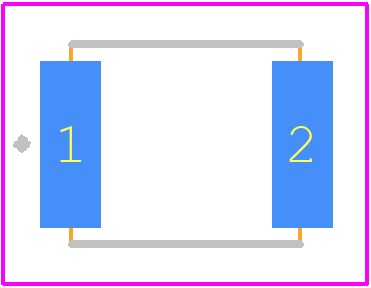

GRM55DR72D474KW01L - Murata Electronics PCB footprint - Other - Other - GRM55 L=5.7mm W=5.0mm T=2.0mm
click to zoom
3D Models
GRM55DR72D474KW01L - Murata Electronics - 3D model - Other - GRM55 L=5.7mm W=5.0mm T=2.0mm
click to zoom

GRM55DR72D474KW01L Details

  • Manufacturer Part Number:

    GRM55DR72D474KW01L

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    , 2220

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.24.00.20

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Capacitance:

    0.47 µF

  • Capacitor Type:

    CERAMIC CAPACITOR

  • Dielectric Material:

    CERAMIC

  • Height:

    2 mm

  • JESD-609 Code:

    e3

  • Length:

    5.7 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Multilayer:

    Yes

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, EMBOSSED, 7 INCH

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    200 V

  • Size Code:

    2220

  • Surface Mount:

    YES

  • Temperature Characteristics Code:

    X7R

  • Temperature Coefficient:

    15% ppm/°C

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Shape:

    WRAPAROUND

  • Width:

    5 mm

GRM55DR72D474KW01L Frequently Asked Questions (FAQs)

  • The recommended land pattern for the GRM55DR72D474KW01L can be found in the Murata Land Pattern Recommendation document, which provides guidelines for pad size, shape, and spacing to ensure reliable soldering and minimize defects.
  • The GRM55DR72D474KW01L is a high-frequency capacitor designed for use up to 1 GHz. It has a low equivalent series resistance (ESR) and a high self-resonant frequency, making it suitable for high-frequency circuits. However, the actual performance may vary depending on the specific application and PCB design.
  • The GRM55DR72D474KW01L has a rated operating temperature range of -55°C to +125°C. While it can withstand high temperatures, it's essential to consider the derating curves and temperature coefficients provided in the datasheet to ensure reliable operation in extreme environments.
  • Murata recommends a soldering profile with a peak temperature of 260°C to 270°C and a dwell time of 10-30 seconds. However, the actual soldering profile may vary depending on the specific PCB design, component density, and manufacturing process.
  • Yes, the GRM55DR72D474KW01L is a sensitive electronic component and requires proper handling and storage to prevent damage. It's essential to follow the recommended storage conditions, handling procedures, and electrostatic discharge (ESD) precautions outlined in the Murata Handling and Storage Guidelines document.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

GRM55DR72D474KW01L Overview

Use the download button to access the GRM55DR72D474KW01L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like GRM55, or try a keyword search, such as Ceramic Capacitors

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
