The recommended PCB layout for the GS2962-IBE3 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper powering and decoupling of the GS2962-IBE3, use a high-quality power supply with low noise and ripple, and decouple the device with 0.1uF and 10uF capacitors between the power pins and ground. Additionally, use a 10uF capacitor between the analog and digital power pins.
The maximum cable length supported by the GS2962-IBE3 depends on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths of up to 100 meters at 3.125 Gbps and up to 50 meters at 6.25 Gbps.
To troubleshoot issues with the GS2962-IBE3, start by checking the power supply and decoupling, then verify the signal integrity and clock frequency. Use an oscilloscope to check the signal waveforms and a logic analyzer to verify the data transmission. Also, check the device's temperature and ensure it is within the recommended operating range.
The GS2962-IBE3 is specifically designed for SDI applications and is not compatible with other standards such as HDMI or DisplayPort. However, Gennum Corporation offers other products that are compatible with these standards.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
GS2962-IBE3 Overview

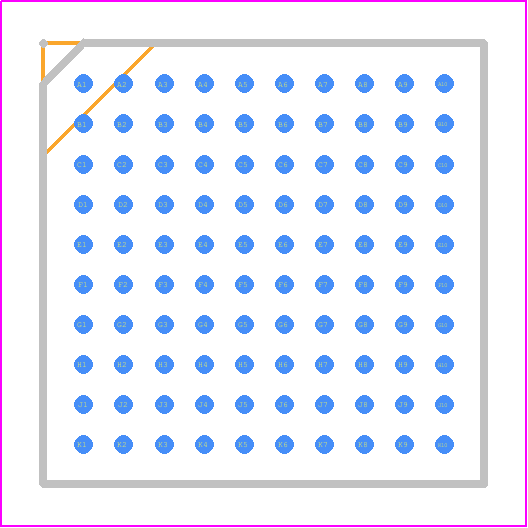

Use the download button to access the GS2962-IBE3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like GS296,
or try a keyword search, such as Other Telecom ICs
