- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for GS2970AIBE3
- Part Number GS2970AIBE3
- Manufacturer SEMTECH
- Pin Count 100
- Part Category Integrated Circuit
- Package Category BGA

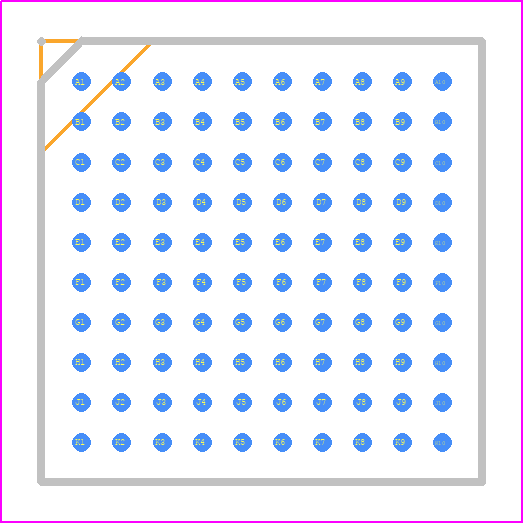

- Footprint Name BGA - 100 BEGA
- Released Date Mar 1, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
GS2970AIBE3 Details
-
Manufacturer Part Number:
GS2970AIBE3
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
BGA-100
-
Country Of Origin:
Malaysia
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Semtech Corporation
-
Additional Feature:
IT ALSO OPERATES AT 3.3 ANALOG SUPPLY VOLTAGE
-
Consumer IC Type:
CONSUMER CIRCUIT
-
JESD-30 Code:
S-PBGA-B100
-
JESD-609 Code:
e1
GS2970AIBE3 Frequently Asked Questions (FAQs)
-
The recommended PCB layout for the GS2970AIBE3 involves placing the device near the edge of the board, using a solid ground plane, and minimizing the length of the transmission lines. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the device's exposed pad should be connected to a solid ground plane.
-
To optimize the GS2970AIBE3's performance for high-frequency applications, ensure that the device is properly terminated, use a high-quality PCB material, and minimize the length of the transmission lines. Additionally, use a low-jitter clock source, and consider using a clock buffer or repeater to improve signal integrity.
-
The GS2970AIBE3 has a maximum junction temperature of 150°C. To ensure reliable operation, ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the airflow around the device. Additionally, consider using thermal interface materials to improve heat transfer.
-
To troubleshoot issues with the GS2970AIBE3, start by verifying the power supply voltage, clock frequency, and signal integrity. Use an oscilloscope to check the signal waveforms, and ensure that the device is properly terminated. Check the device's datasheet for specific troubleshooting guidelines and consider using a logic analyzer or protocol analyzer to debug the issue.
-
The GS2970AIBE3 has built-in ESD protection, but it's still important to follow proper ESD handling procedures when handling the device. Use an ESD wrist strap or mat, and ensure that the device is stored in an ESD-safe environment. Avoid touching the device's pins or exposed pads, and use ESD-safe packaging materials.
Trust Checks
Community Provided
System Verified
Community Approved
GS2970AIBE3 Overview
Use the download button to access the GS2970AIBE3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like GS297,
or try a keyword search, such as Other Consumer ICs
