- Part Number GS2972-IBE3
- Manufacturer SEMTECH
- Pin Count 100
- Part Category Integrated Circuit
- Package Category BGA
- Footprint Name BGA - VCC2
- Released Date Jul 23, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
GS2972-IBE3 Details
-
Manufacturer Part Number:
GS2972-IBE3
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
BGA
-
Package Description:
11 X 11 MM, 1.71 MM HEIGHT, 1 MM PITCH, GREEN, MO-192, LBGA-100
-
Pin Count:
100
-
Country Of Origin:
Malaysia
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Semtech Corporation
-
JESD-30 Code:
S-PBGA-B100
GS2972-IBE3 Frequently Asked Questions (FAQs)
-
The recommended PCB layout for the GS2972-IBE3 involves placing the device near the edge of the board, with the input and output traces separated to minimize crosstalk. A solid ground plane and proper decoupling are also essential for optimal performance.
-
To optimize the GS2972-IBE3 for low power consumption, ensure that the input signal is properly terminated, use a low-power mode if available, and minimize the output load capacitance. Additionally, consider using a lower supply voltage if possible.
-
The maximum cable length supported by the GS2972-IBE3 depends on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths of up to 100 meters at data rates of up to 12 Gbps.
-
To troubleshoot issues with the GS2972-IBE3, start by verifying the power supply and input signal integrity. Check for proper termination, signal amplitude, and clock frequency. Use an oscilloscope to analyze the signal waveform and identify any anomalies.
-
Yes, the GS2972-IBE3 is designed to be compatible with other Semtech Corporation products, including their SerDes and gearbox devices. However, it's essential to verify compatibility and ensure proper system design and integration.
Trust Checks
Community Provided
System Verified
Community Approved
GS2972-IBE3 Overview

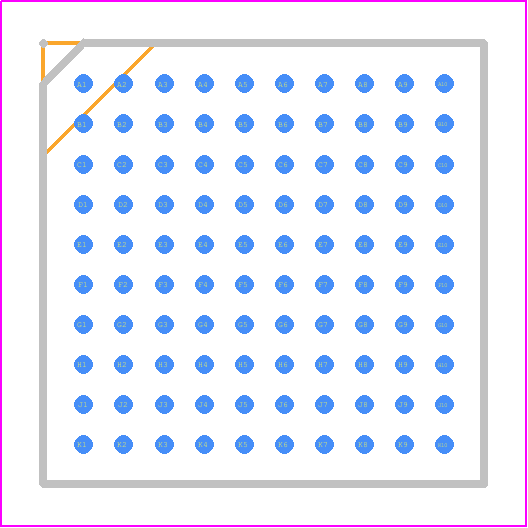

Use the download button to access the GS2972-IBE3 schematic symbol, PCB footprint, and 3D model.
