The recommended PCB layout for the GS2988-INE3 involves placing the device near the antenna, using a solid ground plane, and minimizing the length of the transmission lines. A 4-layer PCB with a dedicated ground plane is recommended.
To optimize the performance of the GS2988-INE3, ensure that the device is properly matched to the antenna, use a high-quality antenna with a good return loss, and optimize the PCB layout for minimal signal loss and reflections.
The GS2988-INE3 has an operating temperature range of -40°C to +85°C. However, the device can be operated at temperatures up to +105°C for short periods of time, but this may affect its reliability and lifespan.
To troubleshoot issues with the GS2988-INE3, start by checking the power supply voltage, ensuring that it is within the recommended range. Then, verify that the device is properly configured and that the antenna is properly connected. Use a spectrum analyzer to check for spurious emissions and ensure that the device is transmitting within the desired frequency range.
Yes, the GS2988-INE3 can be used in battery-powered devices. However, it is essential to ensure that the device is properly power-managed to minimize power consumption and extend battery life. This can be achieved by using power-saving modes, reducing the transmission power, and optimizing the duty cycle.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
GS2988-INE3 Overview

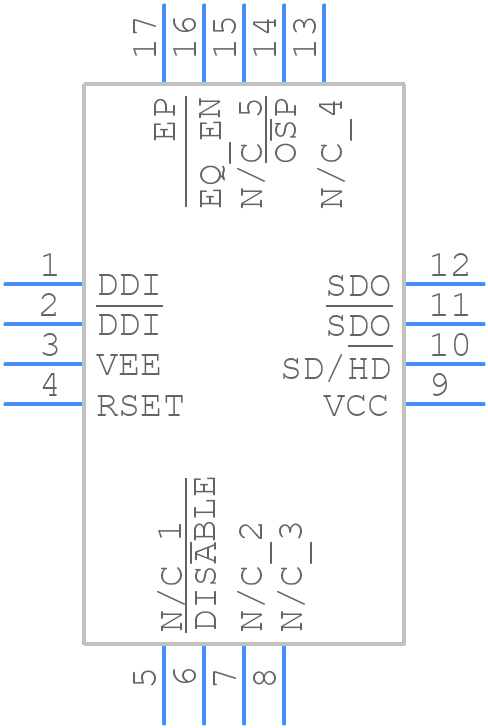

Use the download button to access the GS2988-INE3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like GS298,
or try a keyword search, such as Other Telecom ICs
