A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a common mode filter to reduce EMI.
Use a heat sink to keep the junction temperature below 125°C. Ensure good airflow, and consider using a thermal interface material to improve heat transfer.
The recommended input impedance is 50 ohms, but it can be adjusted to match the specific application requirements. Impedance matching is critical for optimal performance.
Use a logic analyzer or oscilloscope to monitor the input and output signals. Check the power supply voltage, and ensure that the device is properly configured and initialized.
Yes, but impedance matching is critical. Use a matching network or transformer to match the input impedance to the system requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
GS3140-INTE3 Overview

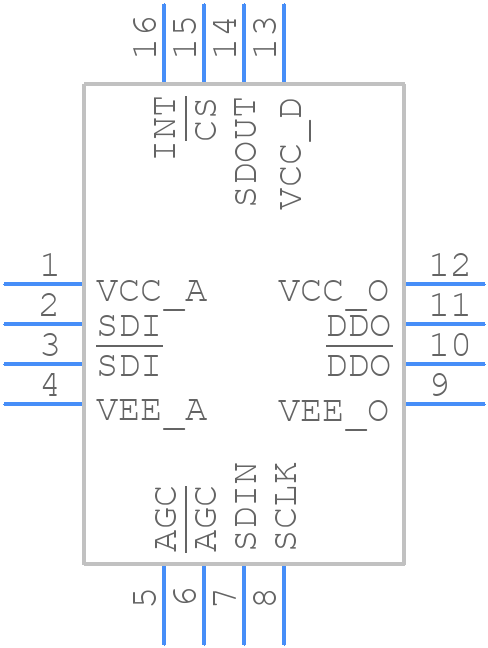

Use the download button to access the GS3140-INTE3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like GS314,
or try a keyword search, such as Other Telecom ICs
