The maximum operating frequency of the GS71116AGP-8I is 133 MHz, but it can be overclocked to 166 MHz with reduced voltage and temperature.
A reliable reset mechanism can be implemented by using a power-on reset (POR) circuit, which ensures that the device is properly reset during power-up. Additionally, a reset signal can be generated using a timer or a watchdog timer to reset the device in case of a fault or error.
The recommended termination scheme for the GS71116AGP-8I's output pins is to use a 50-ohm resistor in series with a 10-pF capacitor to ground. This helps to reduce signal reflections and improve signal integrity.
To optimize the GS71116AGP-8I's power consumption, use the lowest possible voltage supply, reduce the clock frequency, and minimize the number of active banks. Additionally, use the device's power-down mode and clock-stop mode to reduce power consumption during idle periods.
The maximum latency of the GS71116AGP-8I is 10 clock cycles for read operations and 12 clock cycles for write operations. However, this latency can be reduced by using the device's burst mode and optimizing the memory access pattern.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
GS71116AGP-8I Overview

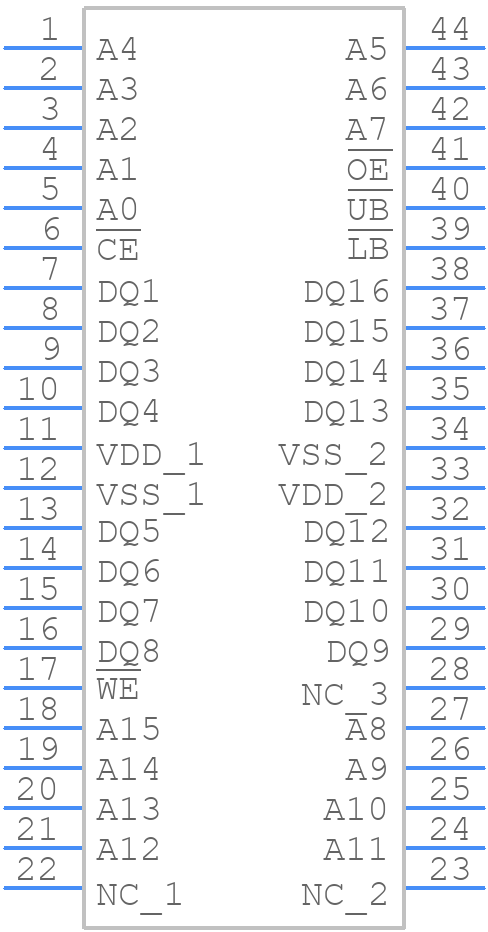

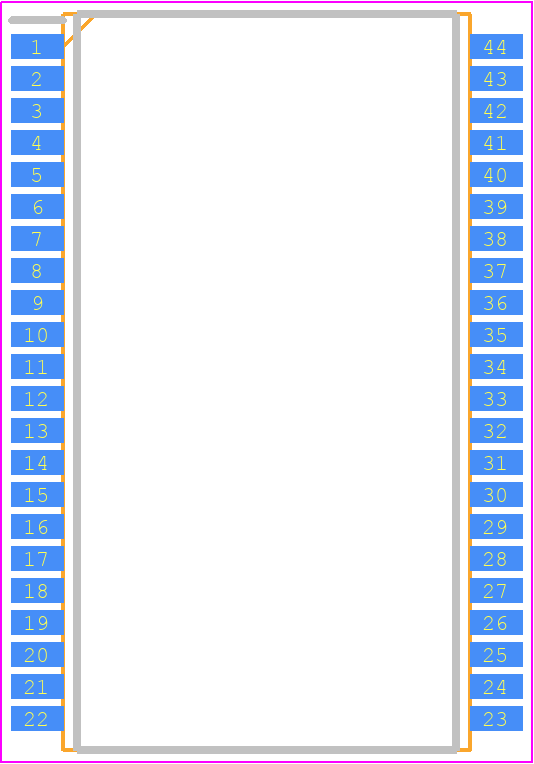

Use the download button to access the GS71116AGP-8I schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like GS711,
or try a keyword search, such as SRAMs
