ALSO OPERATES WITH 2.3V TO 2.7V SUPPLY, FLOW THROUGH OR PIPELINED ARCHITECTURE
JESD-30 Code:
R-PBGA-B165
Length:
15 mm
Memory Density:
9437184 bit
Memory IC Type:
CACHE SRAM
Memory Width:
36
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Terminals:
165
Number of Words:
262144 words
Number of Words Code:
256000
Operating Mode:
SYNCHRONOUS
Operating Temperature-Max:
70 °C
Organization:
256KX36
Package Body Material:
PLASTIC/EPOXY
Package Code:
LBGA
Package Shape:
RECTANGULAR
Package Style:
GRID ARRAY, LOW PROFILE
Parallel/Serial:
SERIAL
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.4 mm
Supply Voltage-Max (Vsup):
3.6 V
Supply Voltage-Min (Vsup):
3 V
Supply Voltage-Nom (Vsup):
3.3 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
COMMERCIAL
Terminal Finish:
Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5)
Terminal Form:
BALL
Terminal Pitch:
1 mm
Terminal Position:
BOTTOM
Width:
13 mm
GS88136CGD-200 Frequently Asked Questions (FAQs)
The maximum operating temperature range for the GS88136CGD-200 is -40°C to +85°C, as specified in the datasheet. However, it's recommended to operate the device within a temperature range of 0°C to 70°C for optimal performance and reliability.
To ensure data integrity and prevent data corruption during power-up and power-down cycles, it's recommended to follow the power-up and power-down sequencing guidelines provided in the datasheet. Additionally, consider implementing a power-on reset (POR) circuit to ensure a clean reset of the device during power-up.
The recommended clock frequency for the GS88136CGD-200 is up to 200 MHz, and the clock-to-output delay (tCKO) is typically around 2-3 ns. However, the actual clock frequency and clock-to-output delay may vary depending on the specific application and system requirements.
To handle asynchronous inputs and ensure proper synchronization with the clock domain, it's recommended to use a synchronizer circuit, such as a double-flop synchronizer or a FIFO-based synchronizer, to resynchronize the asynchronous inputs with the clock domain.
The maximum current consumption of the GS88136CGD-200 is typically around 1.5 A at 1.8V and 200 MHz. To reduce power consumption, consider using power-saving features such as clock gating, dynamic voltage and frequency scaling (DVFS), and reducing the clock frequency during idle periods.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
GS88136CGD-200 Overview

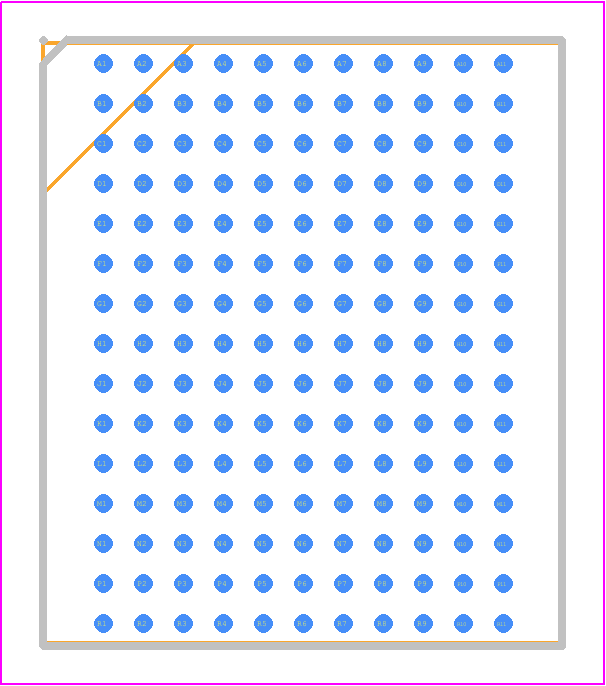

Use the download button to access the GS88136CGD-200 schematic symbol, PCB footprint, and 3D model.
