GSB4112312HR - Amphenol

Description: USB Connectors USB3.1 A STD STK R/A DIP 3

Download GSB4112312HR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

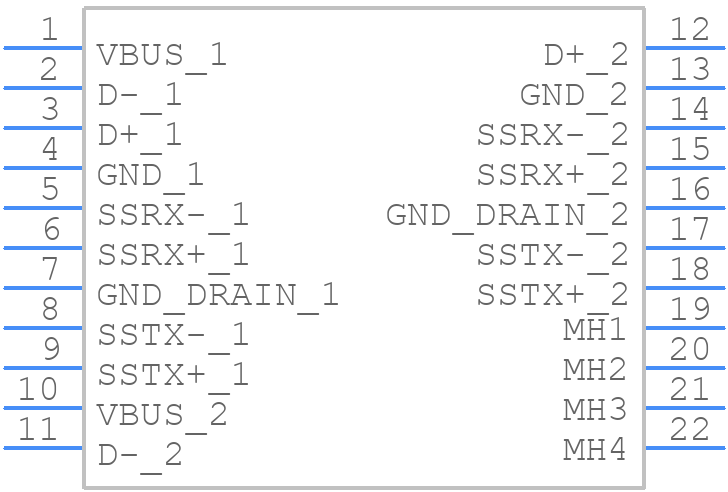

GSB4112312HR - Amphenol - PCB symbol
click to zoom
PCB Footprints

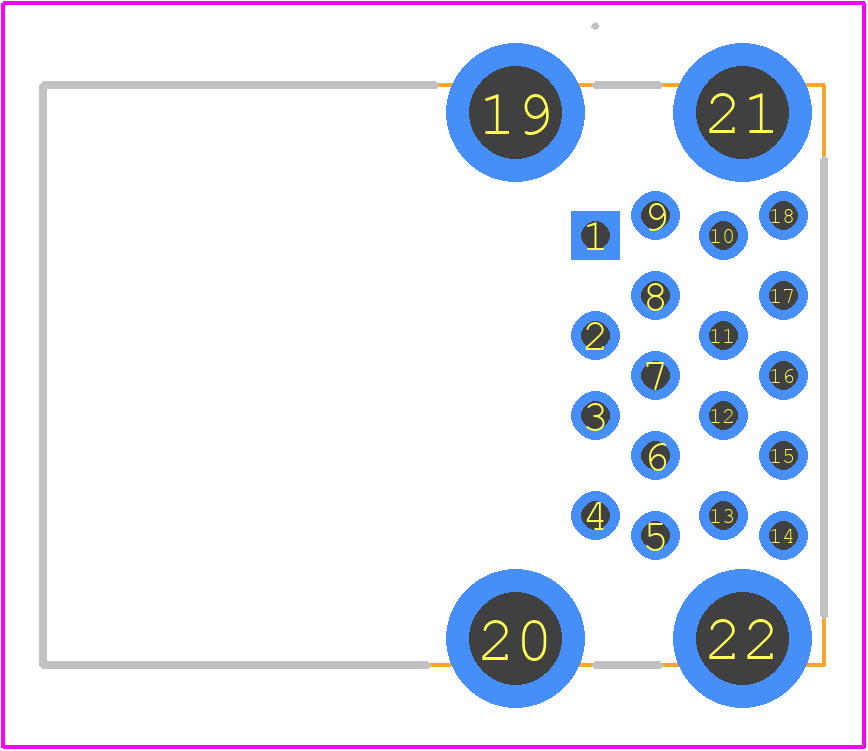

GSB4112312HR - Amphenol PCB footprint - Other - Other - GSB4112312HR-2
click to zoom
3D Models
GSB4112312HR - Amphenol - 3D model - Other - GSB4112312HR-2
click to zoom

GSB4112312HR Details

  • Manufacturer Part Number:

    GSB4112312HR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    8.57

  • Additional Feature:

    OTHER STACKING CONNECTOR: 9 CONTACTS

  • Connector Type:

    USB CONNECTOR

  • Contact Finish Mating:

    GOLD (30) OVER NICKEL (80)

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    COPPER ALLOY

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    NICKEL

  • Shell Material:

    STAINLESS STEEL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    9

  • UL Flammability Code:

    94V-0
