Part Image

GSF1.0002.01 - SCHURTER

Description: CAD-Model shows variation protection class I, snap-in mounting on PCB, fuse holder 2-pole, without fuse, without insulation cover, Terminal straight 4.8x0.8 mm

Download GSF1.0002.01 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
GSF1.0002.01 - SCHURTER - PCB symbol
click to zoom
PCB Footprints

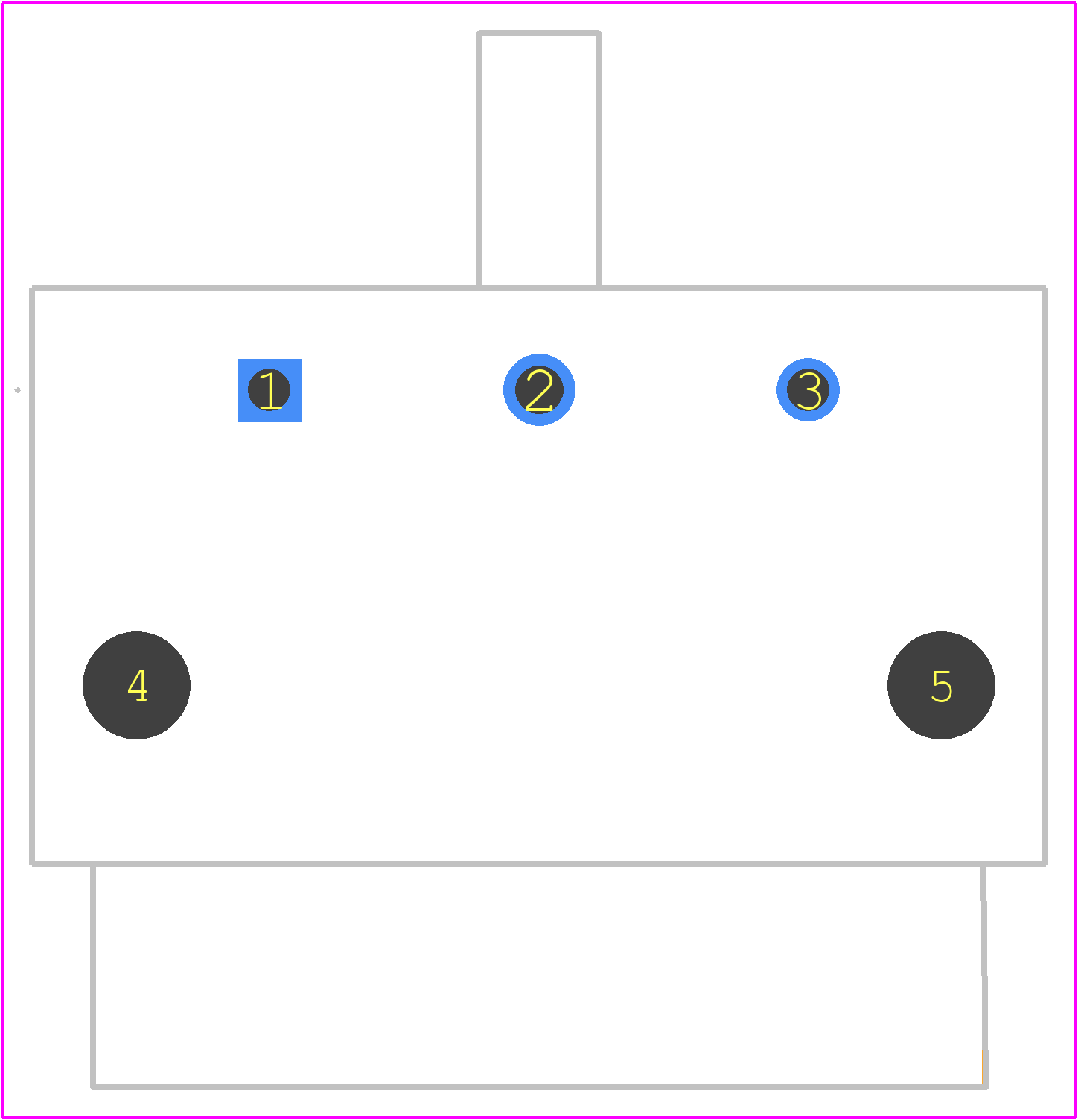

GSF1.0002.01 - SCHURTER PCB footprint - Other - Other - GSF1.0002.01
click to zoom
3D Models
GSF1.0002.01 - SCHURTER - 3D model - Other - GSF1.0002.01
click to zoom

GSF1.0002.01 Details

  • Manufacturer Part Number:

    GSF1.0002.01

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    8 Weeks, 5 Days

  • Manufacturer:

    Schurter Electronic Components

  • YTEOL:

    8

  • Additional Feature:

    STANDARDS: IEC/EN 60320-1/C14, UL 94V-0; UL 498, CSA C22.2, VDE

  • Connector Type:

    MAINS POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    SNAP

  • DIN Conformance:

    NO

  • IEC Conformance:

    YES

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    10A, 250VAC

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mounting Type:

    PANEL

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SCREW

  • Total Number of Contacts:

    3

GSF1.0002.01 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, as specified in the Schurter application notes.
  • Yes, the GSF1.0002.01 fuse is designed to withstand high-vibration environments, making it suitable for use in industrial, transportation, and other applications where vibration is a concern.
  • No, the GSF1.0002.01 fuse is not designed for reverse polarity applications. It is intended for use in standard DC or AC circuits with a single polarity.
  • The minimum order quantity for the GSF1.0002.01 fuse varies depending on the distributor or supplier. Typically, it ranges from 10 to 100 pieces, but it's best to check with the supplier for the exact MOQ.
  • Yes, the GSF1.0002.01 fuse is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in EU and other regions with similar regulations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

GSF1.0002.01 Overview

Use the download button to access the GSF1.0002.01 schematic symbol, PCB footprint, and 3D model.
