- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for GT25-12DP-2.2V(01)
- Part Number GT25-12DP-2.2V(01)
- Manufacturer Hirose
- Pin Count 18
- Part Category Connector
- Package Category Other

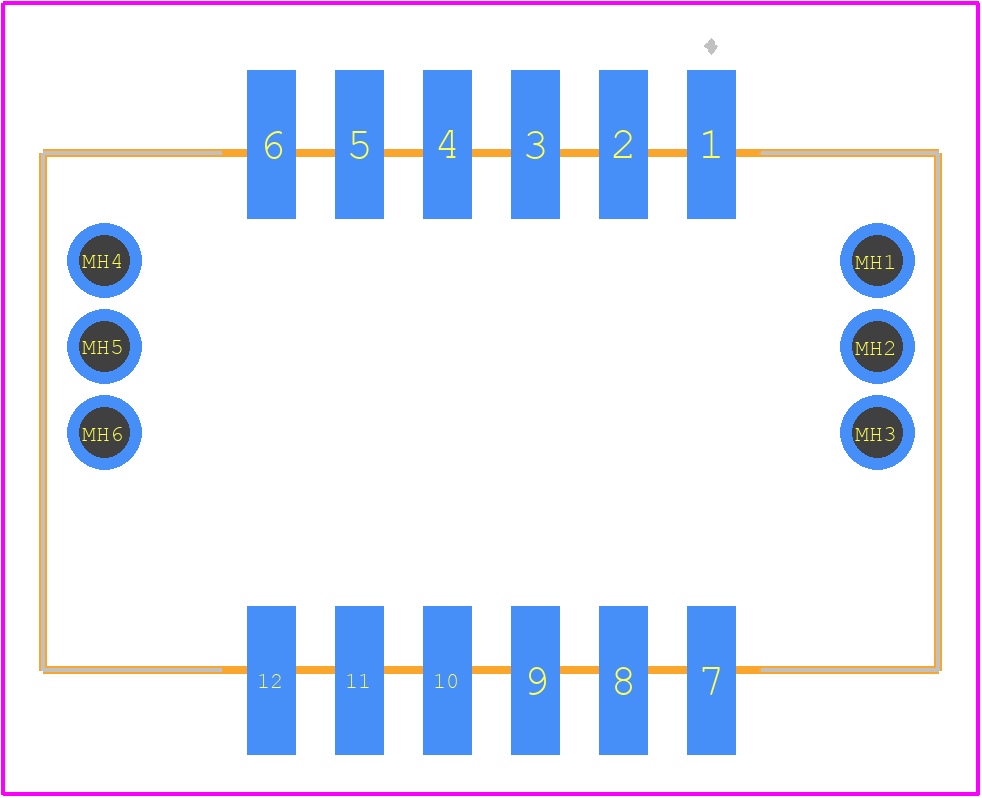

- Footprint Name Other - GT25-12DP-2.2V(01)-2
- Released Date Dec 27, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
GT25-12DP-2.2V(01) Details
-
Manufacturer Part Number:
GT25-12DP-2.2V(01)
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Manufacturer:
Hirose Electric Co Ltd
-
YTEOL:
0
-
Connector Type:
TELECOM AND DATACOM CONNECTOR
-
Contact Finish Mating:
NOT SPECIFIED
-
Contact Finish Termination:
Tin (Sn)
-
Contact Material:
NOT SPECIFIED
GT25-12DP-2.2V(01) Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5 N·m to 1.5 N·m, as specified in the Hirose Electric Co Ltd's application notes.
-
Yes, the GT25-12DP-2.2V(01) is designed to withstand vibrations up to 10G (10-2000Hz) and shocks up to 100G (11ms), making it suitable for use in high-vibration environments.
-
The GT25-12DP-2.2V(01) has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1m for 30 minutes. However, it's recommended to use additional sealing or protective measures for outdoor use.
-
The GT25-12DP-2.2V(01) has an operating temperature range of -40°C to 105°C, making it suitable for use in a wide range of applications.
-
It's not recommended to use a wire gauge that is significantly different from the specified range (AWG 24-28) as it may affect the connector's performance and reliability.
Trust Checks
Expert Contribution
System Verified
Community Approved
GT25-12DP-2.2V(01) Overview

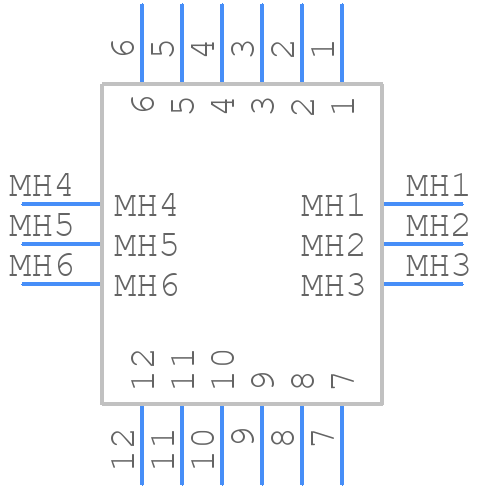

Use the download button to access the GT25-12DP-2.2V(01) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like GT25-,
or try a keyword search, such as Telecom and Datacom Connectors
