GT25-32DP-2.2H - Hirose

Description: CONN PIN HEADER PCB SMD R/A

Download GT25-32DP-2.2H Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

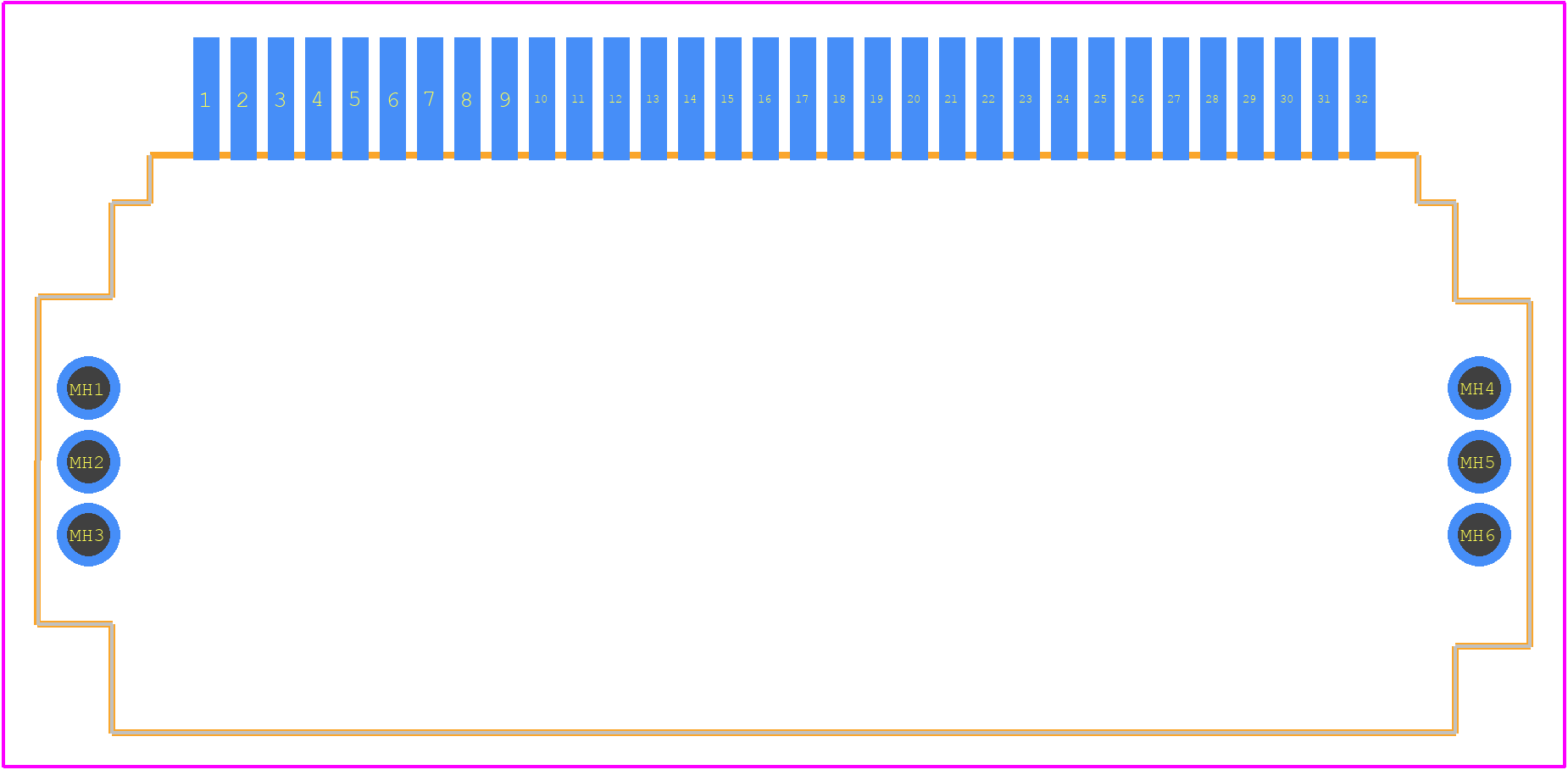

GT25-32DP-2.2H - Hirose PCB footprint - Other - Other - GT25-32DP-2.2H-2
click to zoom
3D Models
GT25-32DP-2.2H - Hirose  - 3D model - Other - GT25-32DP-2.2H-2
click to zoom

GT25-32DP-2.2H Details

  • Manufacturer Part Number:

    GT25-32DP-2.2H

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    0

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    30 mΩ

  • DIN Conformance:

    NO

  • Dielectric Withstanding Voltage:

    650VAC V

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    100000000 Ω

  • Insulator Color:

    GRAY

  • Insulator Material:

    POLYPHENYLENE SULPHIDE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.087 inch

  • Mating Contact Row Spacing:

    0.118 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Shell Finish:

    TIN

  • Shell Material:

    BRASS

  • Terminal Pitch:

    1.0922 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    32

GT25-32DP-2.2H Frequently Asked Questions (FAQs)

  • The recommended mating sequence is to mate the guide pins first, followed by the signal contacts. This ensures proper alignment and prevents damage to the connector.
  • Yes, the GT25-32DP-2.2H connector is designed to withstand high-vibration environments. It has a ruggedized design and a secure locking mechanism to ensure reliable connections.
  • The maximum operating temperature range for the GT25-32DP-2.2H connector is -40°C to 105°C. However, it's recommended to consult the datasheet for specific temperature ratings for different applications.
  • Yes, the GT25-32DP-2.2H connector is designed to be compatible with automated assembly processes, including pick-and-place machines and wire termination equipment.
  • The recommended torque value for the GT25-32DP-2.2H connector's screw locks is 0.5 N·m to 1.5 N·m. It's essential to follow the recommended torque value to ensure reliable connections and prevent damage to the connector.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

GT25-32DP-2.2H Overview

Use the download button to access the GT25-32DP-2.2H schematic symbol, PCB footprint, and 3D model.
