GT25-32DP-2.2V(01) footprint, schematic symbol and 3D model by Hirose

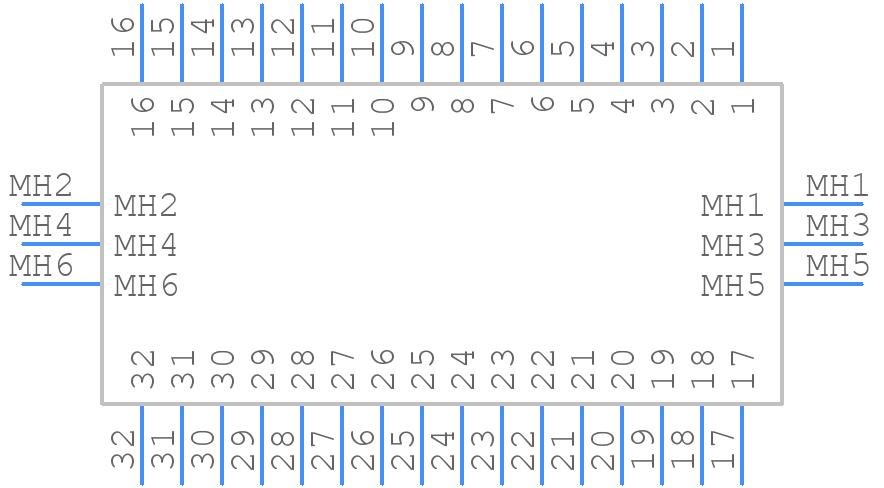

Symbol

click to zoom

PCB Footprints

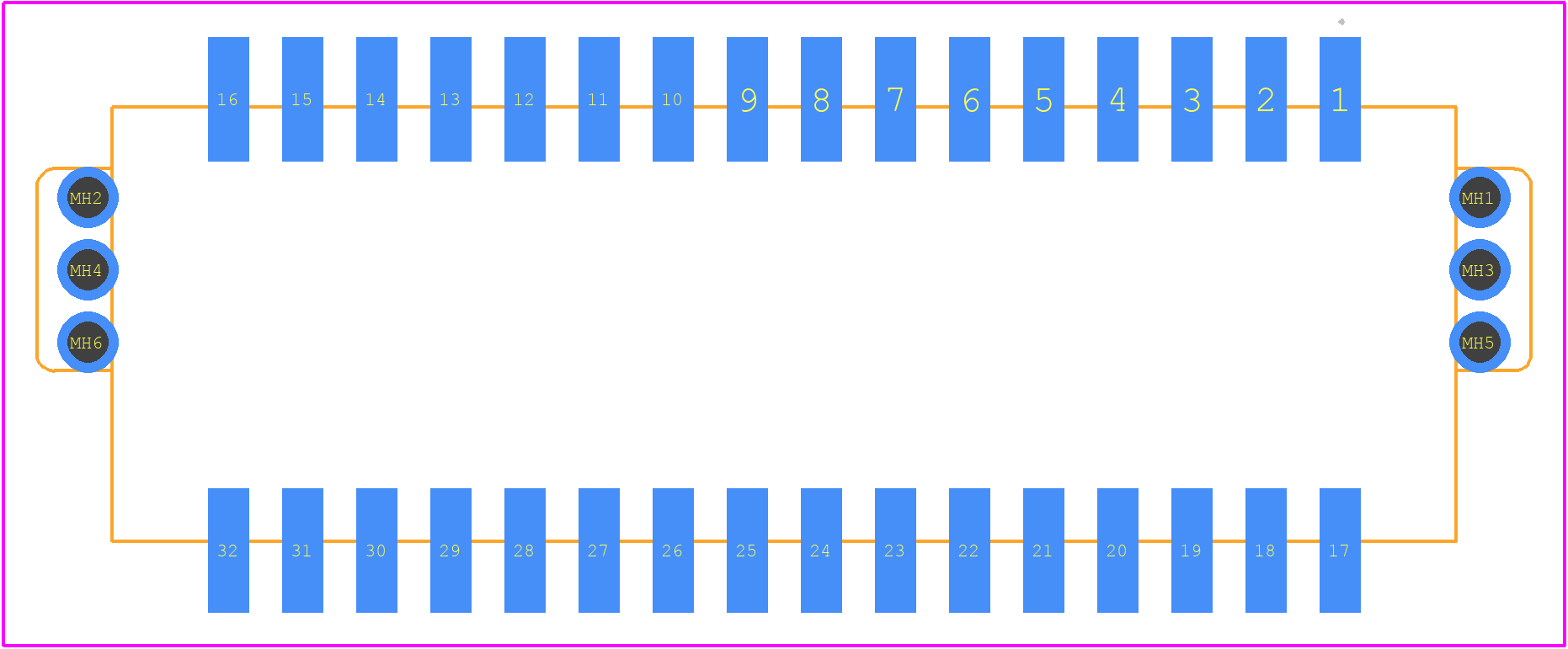

GT25-32DP-2.2V(01) - Hirose PCB footprint - Other - Other - GT25-32DP-2.2V(01)-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for GT25-32DP-2.2V(01)
Part Number GT25-32DP-2.2V(01)
Manufacturer Hirose
Pin Count 38
Part Category Connector
Package Category Other
Footprint Name Other - GT25-32DP-2.2V(01)-2
Released Date Mar 17, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

GT25-32DP-2.2V(01) Details

Manufacturer Part Number:
GT25-32DP-2.2V(01)
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
Hirose Electric Co Ltd
YTEOL:
0
Body/Shell Style:
RECEPTACLE
Connector Type:
TELECOM AND DATACOM CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
TIN
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
Contact Pattern:
RECTANGULAR
Contact Resistance:
30 mΩ
Contact Style:
SQ PIN-SKT
Dielectric Withstanding Voltage:
650VAC V
Insulation Resistance:
100000000 Ω
Insulator Color:
GRAY
Insulator Material:
POLYPHENYLENE SULFIDE
Mating Contact Pitch:
0.087 inch
Mating Contact Row Spacing:
0.118 inch
Mounting Option 1:
LOCKING
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Ports:
1
Number of Rows Loaded:
2
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
PCB Contact Pattern:
RECTANGULAR
Rated Current (Signal):
3 A
Terminal Pitch:
2.2098 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
32

GT25-32DP-2.2V(01) Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5 N·m to 1.5 N·m (0.37 lbf·in to 1.06 lbf·in).
Yes, the GT25-32DP-2.2V(01) connector is designed to withstand high-vibration environments, with a vibration resistance of 10-2000 Hz, 10 G acceleration.
Yes, the GT25-32DP-2.2V(01) connector is designed to operate in a wide range of temperatures (-40°C to 105°C) and humidity levels (up to 95% RH). However, it's recommended to consult the datasheet and Hirose's application notes for specific guidance on environmental considerations.
The GT25-32DP-2.2V(01) connector has a mating cycle life of 500 cycles minimum.
Yes, the GT25-32DP-2.2V(01) connector is RoHS and REACH compliant, meeting the requirements of the European Union's directives on the restriction of hazardous substances and the registration, evaluation, authorization, and restriction of chemicals.

Trust Checks

Expert Contribution

System Verified

Community Approved

GT25-32DP-2.2V(01) Overview

Use the download button to access the GT25-32DP-2.2V(01) schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like GT25-, or try a keyword search, such as Telecom and Datacom Connectors
