The recommended torque for the screw terminals is 0.5 N·m to 1.5 N·m, as specified in the Hirose Electric Co Ltd's application notes.
Yes, the GT25-40DP-2.2H(01) is designed to withstand vibrations up to 10G (10-2000Hz) and is suitable for use in high-vibration environments, such as in industrial or automotive applications.
The GT25-40DP-2.2H(01) has a rating of IP67, which means it is protected against dust and water immersion up to 1 meter for 30 minutes. However, it's recommended to use additional sealing or protection measures for extended outdoor use.
The GT25-40DP-2.2H(01) has an operating temperature range of -40°C to 105°C, making it suitable for use in a wide range of applications.
The GT25-40DP-2.2H(01) is designed to accommodate cables with a diameter of 2.2mm to 4.5mm. However, it's recommended to consult the datasheet and application notes for specific cable size recommendations.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
GT25-40DP-2.2H(01) Overview

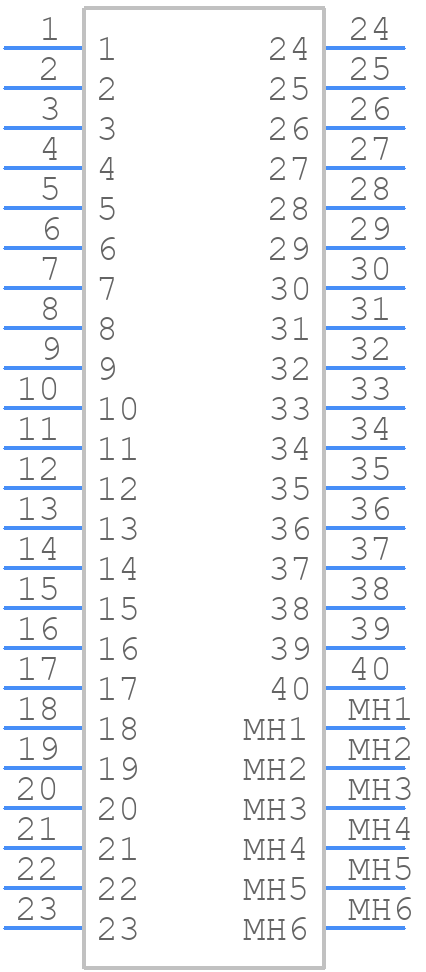

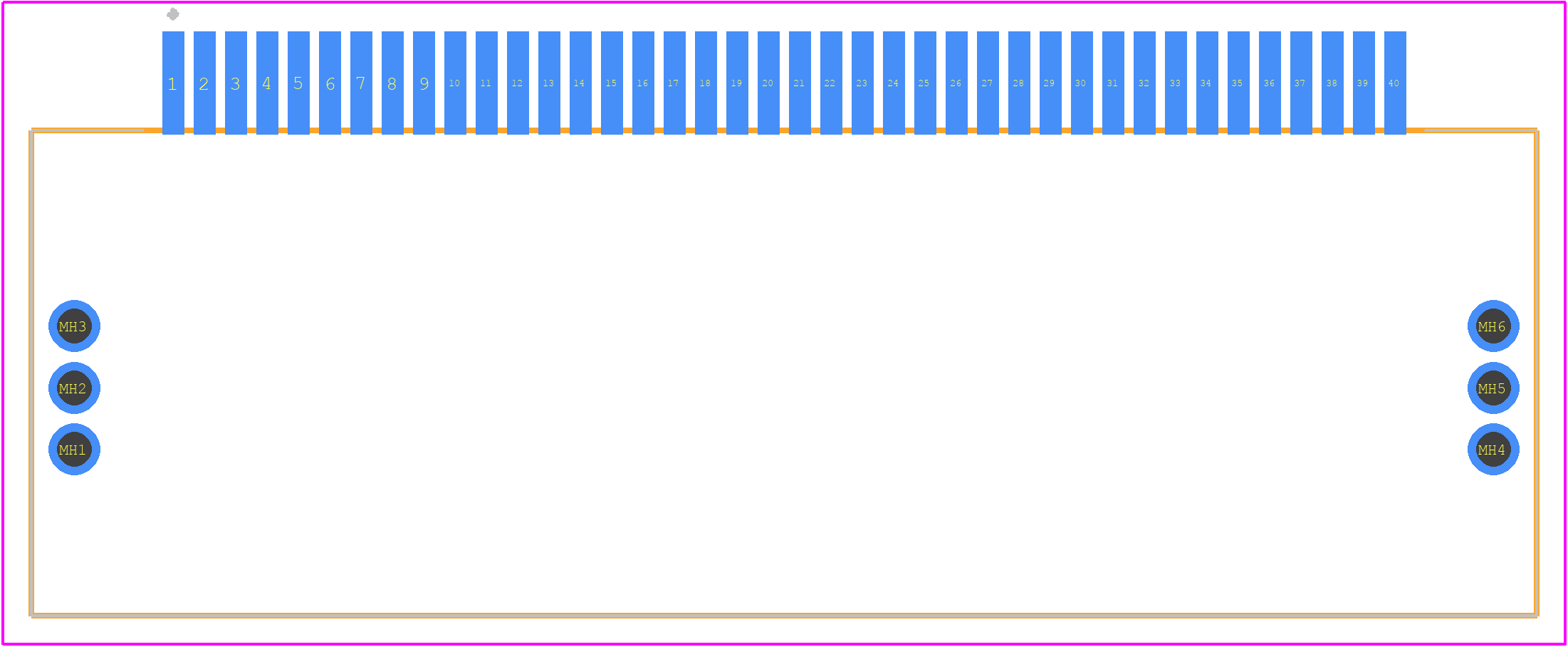

Use the download button to access the GT25-40DP-2.2H(01) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like GT25-,
or try a keyword search, such as Combination Line Connectors
