- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for GT25-8DP-2.2H(32)
- Part Number GT25-8DP-2.2H(32)
- Manufacturer Hirose
- Pin Count 14
- Part Category Connector
- Package Category Other

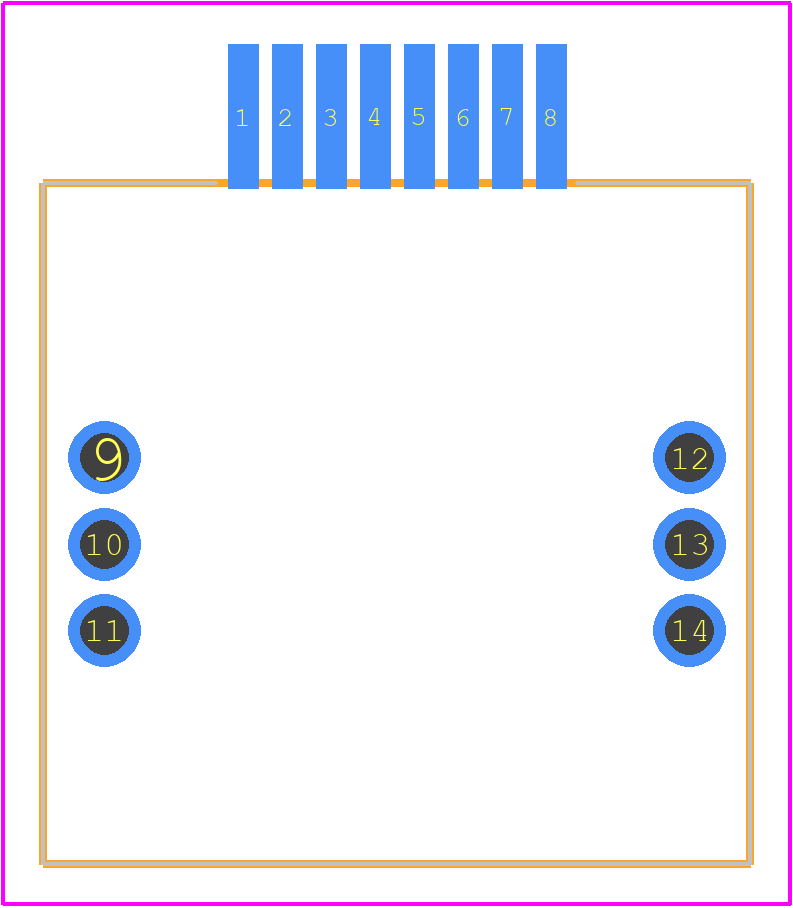

- Footprint Name Other - GT25-8DP-2.2H(32)-1
- Released Date Oct 13, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
GT25-8DP-2.2H(32) Details
-
Manufacturer Part Number:
GT25-8DP-2.2H(32)
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Factory Lead Time:
12 Weeks
-
Manufacturer:
Hirose Electric Co Ltd
-
YTEOL:
0
-
Connector Type:
TELECOM AND DATACOM CONNECTOR
-
Contact Finish Mating:
NOT SPECIFIED
-
Contact Finish Termination:
Tin (Sn)
GT25-8DP-2.2H(32) Frequently Asked Questions (FAQs)
-
The recommended mating sequence is to mate the guide pins first, followed by the signal contacts. This ensures proper alignment and prevents damage to the connector.
-
Yes, the GT25-8DP-2.2H(32) connector is designed to withstand high-vibration environments. However, it's essential to follow the recommended torque values and ensure proper mounting to prevent connector damage or disconnection.
-
The maximum operating temperature for the GT25-8DP-2.2H(32) connector is 125°C. Exceeding this temperature may affect the connector's performance and reliability.
-
The GT25-8DP-2.2H(32) connector has a IP67 rating, which means it can withstand exposure to water and dust. However, it's not recommended to use the connector in environments with exposure to harsh chemicals or extreme temperatures without proper protection or sealing.
-
The recommended cable size for the GT25-8DP-2.2H(32) connector is AWG 28-32. Using cables with smaller or larger diameters may affect the connector's performance and reliability.
Trust Checks
Expert Contribution
System Verified
Community Approved
GT25-8DP-2.2H(32) Overview
Use the download button to access the GT25-8DP-2.2H(32) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like GT25-,
or try a keyword search, such as Telecom and Datacom Connectors
