GT25H2-20DP-2.2H(10) footprint, schematic symbol and 3D model by Hirose

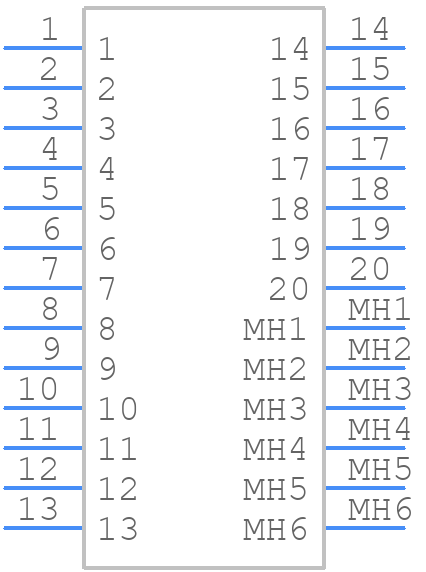

Symbol

click to zoom

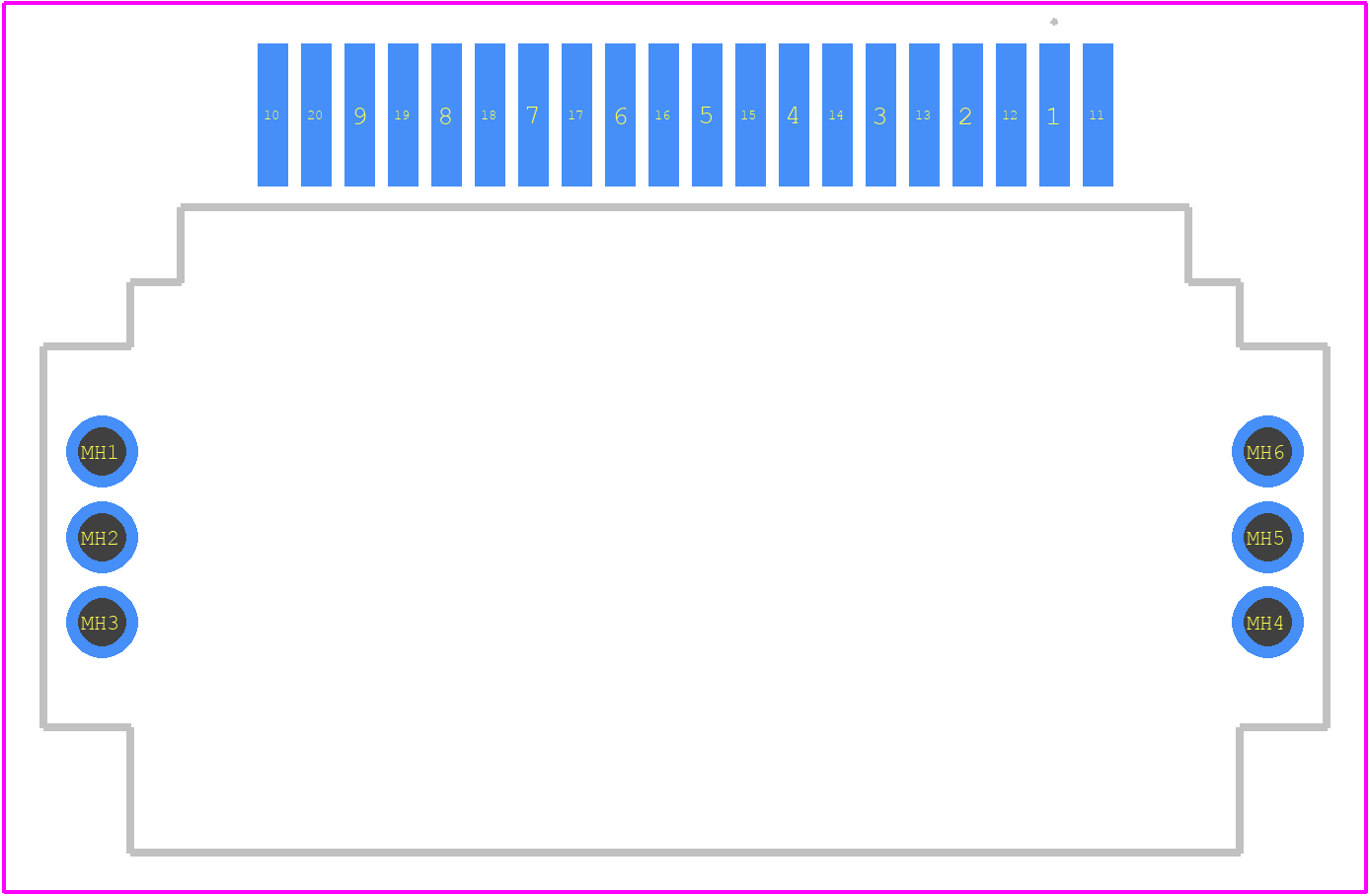

PCB Footprints

GT25H2-20DP-2.2H(10) - Hirose PCB footprint - Other - Other - GT25H2-20DP-2.2H(10)-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for GT25H2-20DP-2.2H(10)
Part Number GT25H2-20DP-2.2H(10)
Manufacturer Hirose
Pin Count 26
Part Category Connector
Package Category Other
Footprint Name Other - GT25H2-20DP-2.2H(10)-3
Released Date Mar 8, 2024
Last Modified Date Mar 11, 2024 10:03 PM UTC
Pinout / Pin List Click Here (Member Only)

GT25H2-20DP-2.2H(10) Details

Manufacturer Part Number:
GT25H2-20DP-2.2H(10)
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
16 Weeks
Manufacturer:
Hirose Electric Co Ltd
Connector Type:
BOARD CONNECTOR

GT25H2-20DP-2.2H(10) Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5 N·m to 1.0 N·m (0.37 lbf·in to 0.74 lbf·in).
Yes, the GT25H2-20DP-2.2H(10) is designed to withstand vibrations up to 10 Hz to 2000 Hz, 10 G acceleration.
Yes, the connector is sealed to IP67 rating, making it suitable for outdoor use and protecting against dust and water ingress.
The operating temperature range for the GT25H2-20DP-2.2H(10) is -40°C to 85°C (-40°F to 185°F).
Yes, the connector is designed to accommodate cables with diameters ranging from 2.2 mm to 4.5 mm (0.087 in to 0.177 in).
