The recommended torque for the screw terminals is 0.5 N·m to 1.5 N·m, as specified in the Hirose application notes.
Yes, the GT25H2-40DP-2.2H(10) is designed to withstand vibrations up to 10G, making it suitable for use in high-vibration environments.
The operating temperature range for the GT25H2-40DP-2.2H(10) is -40°C to 105°C, as specified in the datasheet.
Yes, the GT25H2-40DP-2.2H(10) is compatible with lead-free soldering, with a recommended soldering temperature of 260°C to 270°C.
The mating cycle rating for the GT25H2-40DP-2.2H(10) is 500 cycles, as specified in the datasheet.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
GT25H2-40DP-2.2H(10) Overview

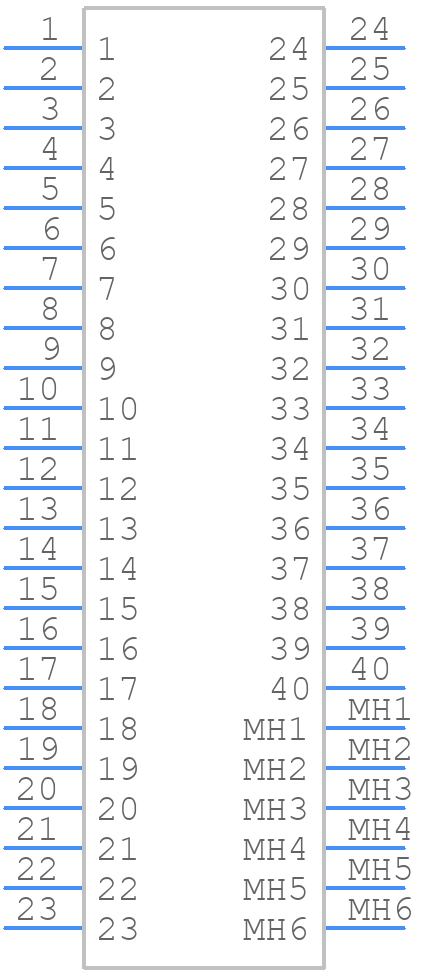

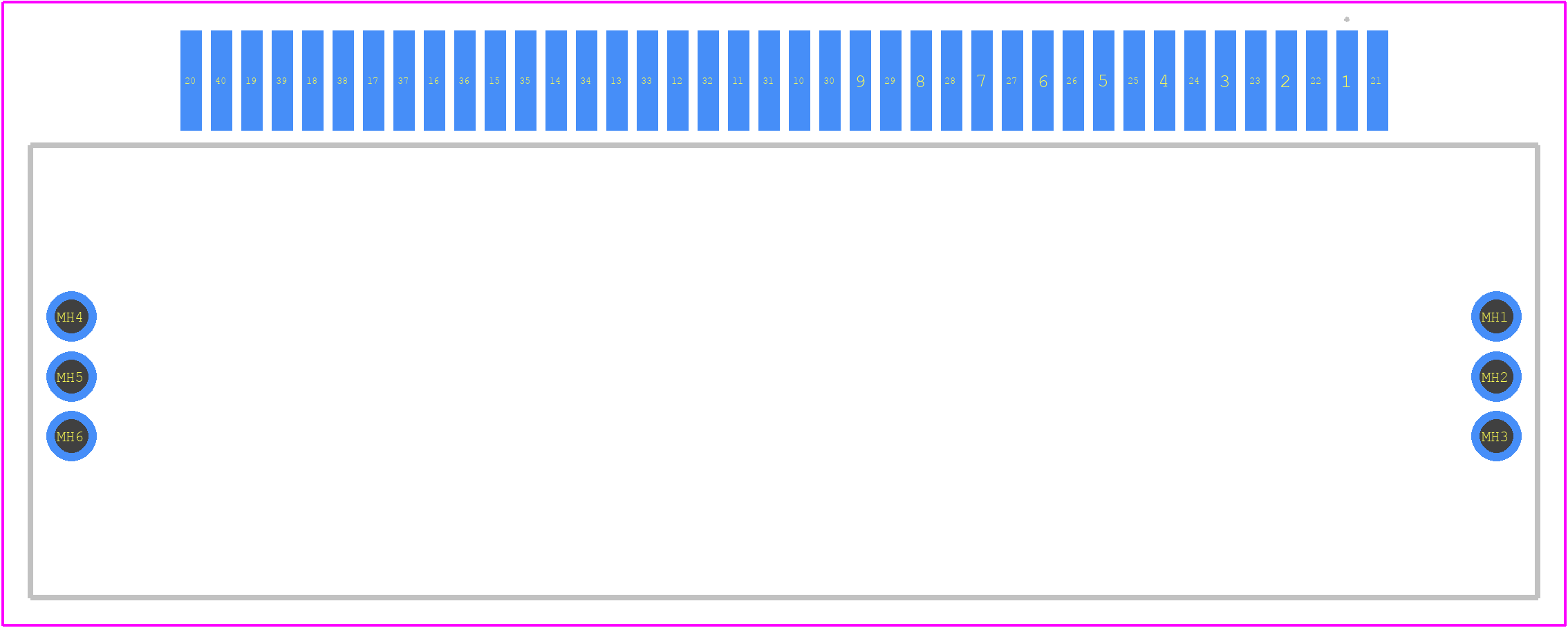

Use the download button to access the GT25H2-40DP-2.2H(10) schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like GT25H,
or try a keyword search, such as Headers and Edge Type Connectors
