Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for GT25H2-8DP-2.2H
- Part Number GT25H2-8DP-2.2H
- Manufacturer Hirose
- Pin Count 14
- Part Category Connector
- Package Category Other

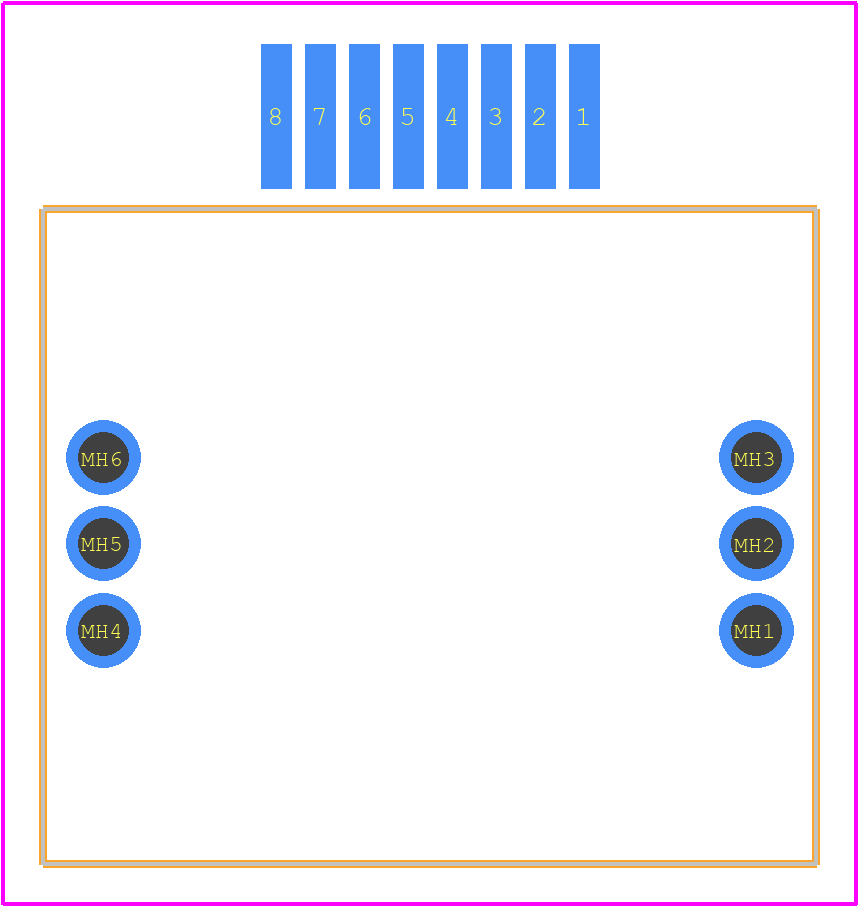

- Footprint Name Other - GT25H2-8DP-2.2H-3
- Released Date Jun 3, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
GT25H2-8DP-2.2H Details
-
Manufacturer Part Number:
GT25H2-8DP-2.2H
-
Manufacturer:
Hirose Electric Co Ltd
Trust Checks
Expert Contribution
System Verified
Community Approved
GT25H2-8DP-2.2H Overview
Use the download button to access the GT25H2-8DP-2.2H schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like GT25H,
or try a keyword search, such as Combination Line Connectors
