GT8E-12DP-DS - Hirose

Description: Automotive Connectors CONN HDR 2MM 12POS VERT PCB TIN

Download GT8E-12DP-DS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

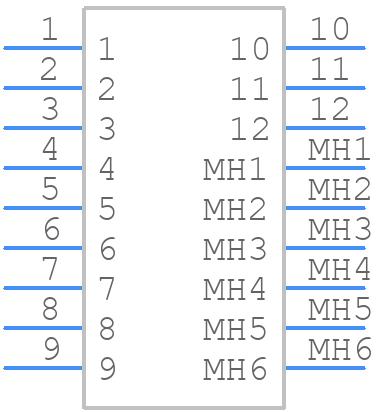

GT8E-12DP-DS - Hirose - PCB symbol
click to zoom
PCB Footprints

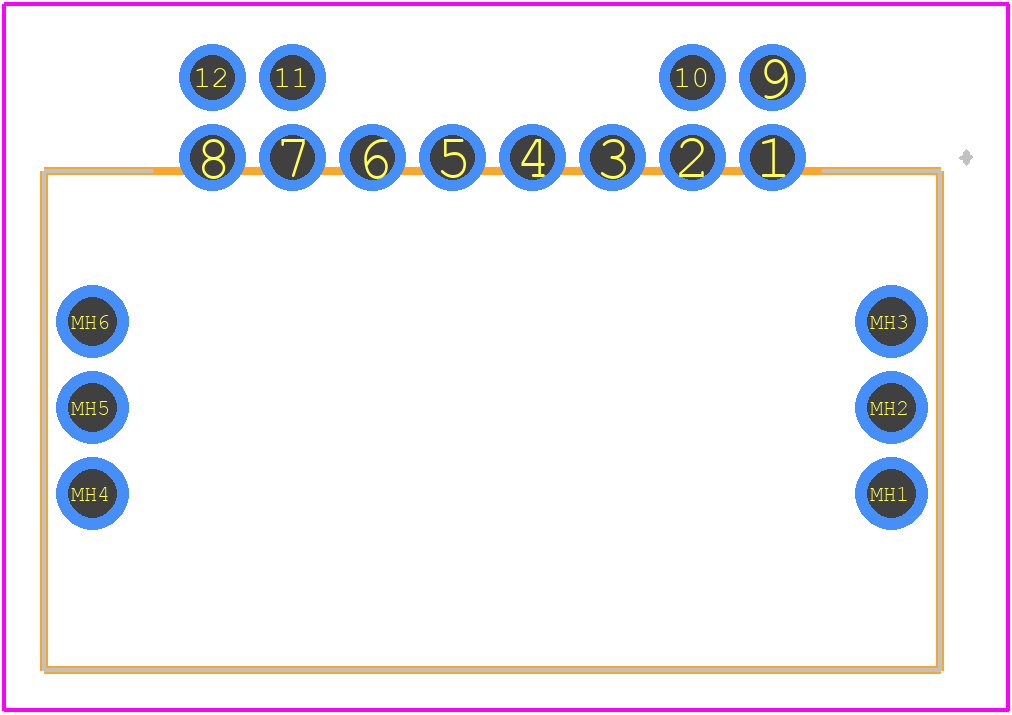

GT8E-12DP-DS - Hirose PCB footprint - Other - Other - GT8E-12DP-DS-4
click to zoom
3D Models
GT8E-12DP-DS - Hirose - 3D model - Other - GT8E-12DP-DS-4
click to zoom

GT8E-12DP-DS Details

  • Manufacturer Part Number:

    GT8E-12DP-DS

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.51

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    0

  • Connector Type:

    DIP CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    TIN

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    12

  • UL Flammability Code:

    94V-0

GT8E-12DP-DS Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 0.5 N·m to 1.5 N·m. It's essential to follow this range to ensure secure connection and prevent damage to the connector.
  • Yes, the GT8E-12DP-DS is designed to withstand vibrations and shocks. It meets the IEC 61373 Category 2 standard for vibration and shock resistance, making it suitable for use in high-vibration environments.
  • The GT8E-12DP-DS connector is designed to operate in temperatures ranging from -40°C to 105°C. However, it's essential to note that the temperature range may affect the connector's performance and lifespan.
  • Yes, the GT8E-12DP-DS connector is designed for outdoor use and meets the IP67 standard for ingress protection. It can withstand exposure to dust and water, making it suitable for use in harsh environments.
  • The GT8E-12DP-DS connector has a mating cycle life of 500 cycles. This means it can withstand 500 connect and disconnect cycles without compromising its performance.
