GT8E-20DP-DS - Hirose

Description: Automotive Connectors CONN HDR 2MM 20POS VERT PCB TIN

Download GT8E-20DP-DS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

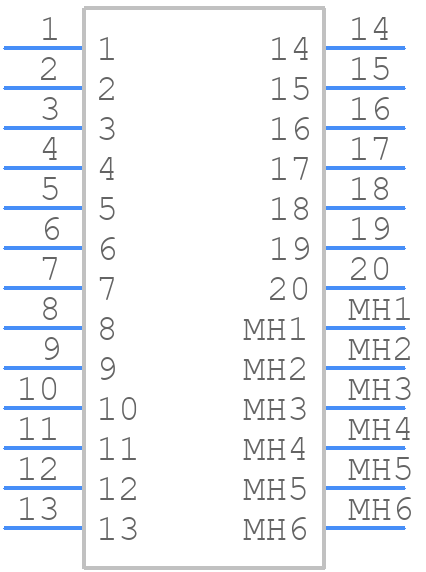

GT8E-20DP-DS - Hirose - PCB symbol
click to zoom
PCB Footprints

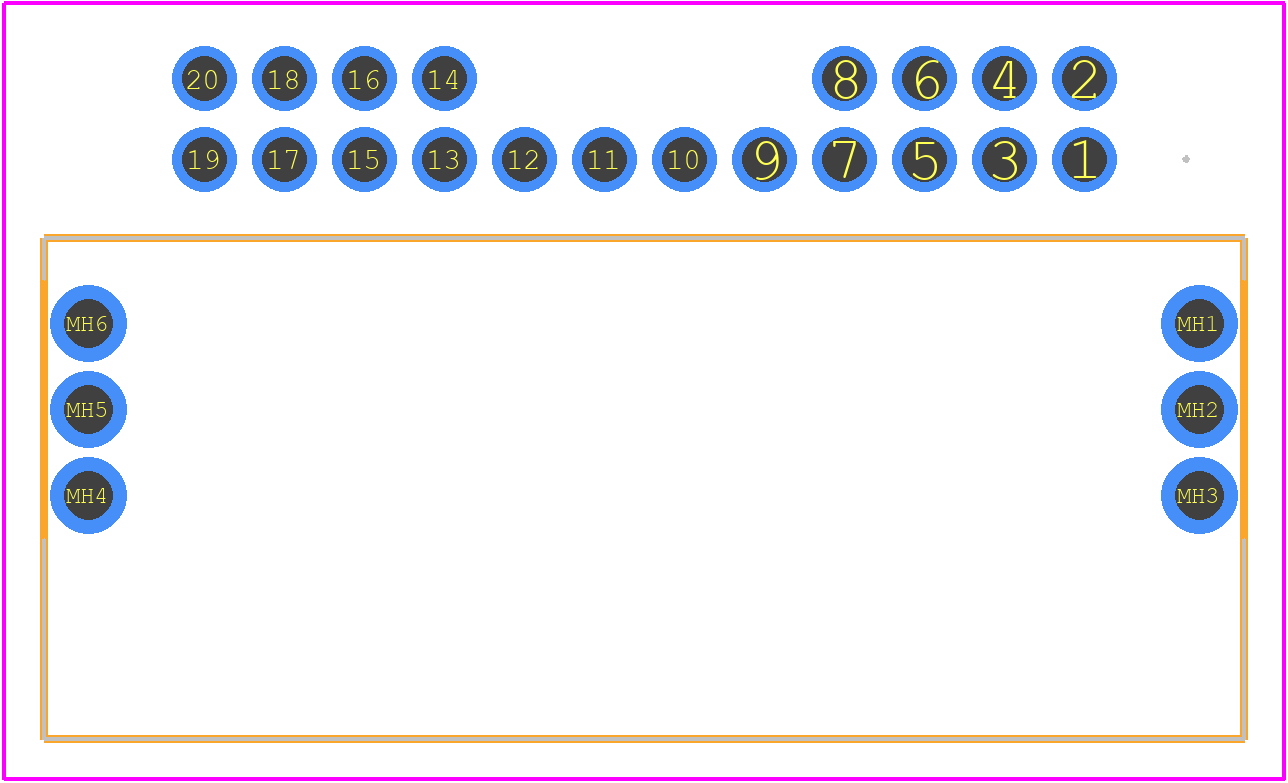

GT8E-20DP-DS - Hirose PCB footprint - Other - Other - GT8E-20DP-DS-5
click to zoom
3D Models
GT8E-20DP-DS - Hirose - 3D model - Other - GT8E-20DP-DS-5
click to zoom

GT8E-20DP-DS Details

  • Manufacturer Part Number:

    GT8E-20DP-DS

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.51

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    0

  • Connector Type:

    DIP CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    TIN

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    20

  • UL Flammability Code:

    94V-0

GT8E-20DP-DS Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the GT8E-20DP-DS connector is 0.5 N·m to 1.5 N·m.
  • Yes, the GT8E-20DP-DS connector is designed to withstand high-vibration environments and is suitable for use in applications such as automotive, industrial, and aerospace.
  • Yes, the GT8E-20DP-DS connector is designed to support high-speed signals up to 10 Gbps and is suitable for use in high-speed applications such as USB 3.0 and SATA.
  • The operating temperature range of the GT8E-20DP-DS connector is -40°C to 105°C.
  • Yes, the GT8E-20DP-DS connector is RoHS and REACH compliant, making it suitable for use in applications that require environmental compliance.
