GT8E-4P-DS - Hirose

Description: Automotive Connectors 2MM 4POS PCB TIN CONN HDR VERT

Download GT8E-4P-DS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
GT8E-4P-DS - Hirose - PCB symbol
click to zoom
PCB Footprints

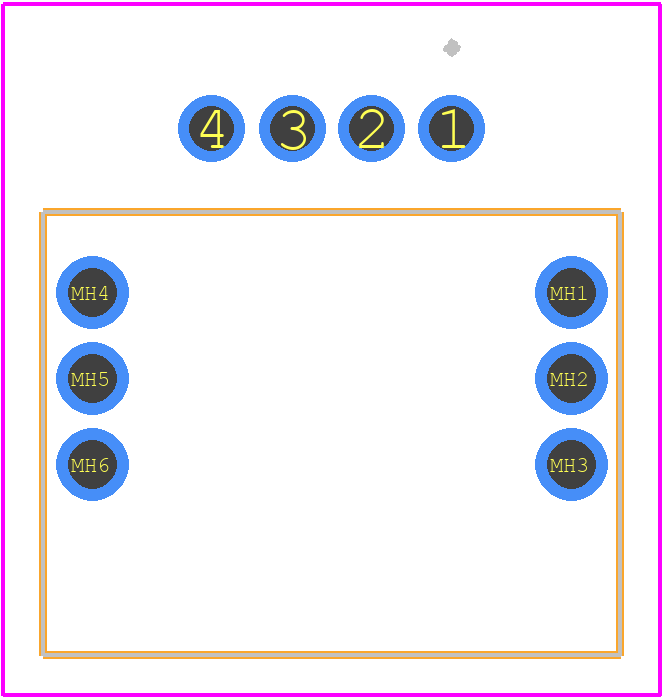

GT8E-4P-DS - Hirose PCB footprint - Other - Other - GT8E-4P-DS-2
click to zoom
3D Models
GT8E-4P-DS - Hirose - 3D model - Other - GT8E-4P-DS-2
click to zoom

GT8E-4P-DS Details

  • Manufacturer Part Number:

    GT8E-4P-DS

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.51

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    0

  • Connector Type:

    DIP CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    TIN

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    4

  • UL Flammability Code:

    94V-0

GT8E-4P-DS Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the GT8E-4P-DS connector is 0.5 N·m to 1.5 N·m.
  • Yes, the GT8E-4P-DS connector is designed to withstand high vibrations and is suitable for applications where vibration is a concern.
  • Yes, the GT8E-4P-DS connector is designed to operate in harsh environments, including high temperatures up to 125°C and high humidity.
  • The mating cycle life of the GT8E-4P-DS connector is 500 cycles.
  • Yes, the GT8E-4P-DS connector is designed to be compatible with automated assembly and inspection systems, making it suitable for high-volume production.
