GT8E-6P-DS - Hirose

Description: Automotive Connectors 2MM 6POS PCB TIN CONN HDR VERT

Download GT8E-6P-DS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
GT8E-6P-DS - Hirose - PCB symbol
click to zoom
PCB Footprints

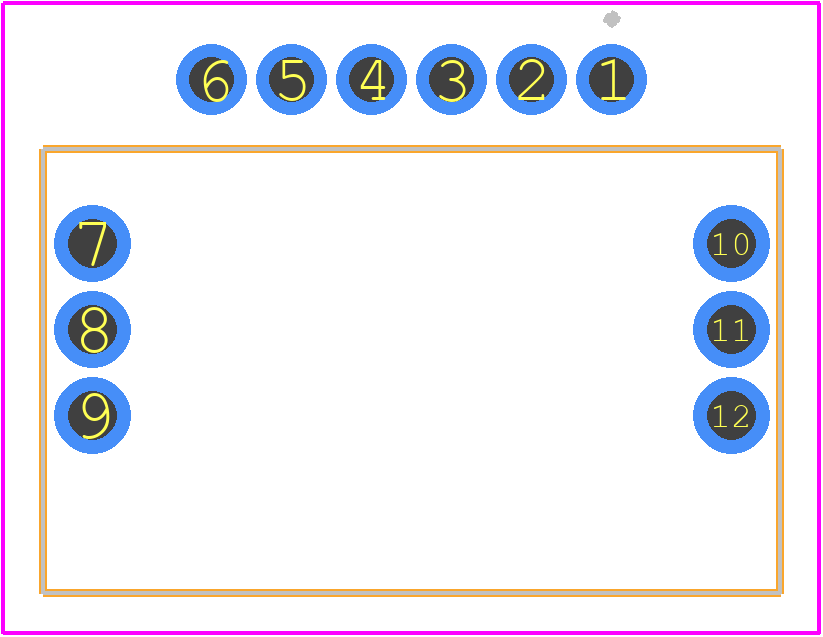

GT8E-6P-DS - Hirose PCB footprint - Other - Other - GT8E-6P-DS-3
click to zoom
3D Models
GT8E-6P-DS - Hirose - 3D model - Other - GT8E-6P-DS-3
click to zoom

GT8E-6P-DS Details

  • Manufacturer Part Number:

    GT8E-6P-DS

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.51

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    0

  • Connector Type:

    DIP CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    TIN

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    6

  • UL Flammability Code:

    94V-0

GT8E-6P-DS Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 0.5 N·m to 1.5 N·m. It's essential to follow this range to ensure secure connection and prevent damage to the connector.
  • Yes, the GT8E-6P-DS is designed to withstand vibrations and can be used in high-vibration applications. However, it's crucial to ensure proper mounting and screw locking to maintain the connection's integrity.
  • The operating temperature range for the GT8E-6P-DS is -40°C to 105°C. It's essential to ensure the connector is used within this range to maintain its performance and reliability.
  • The GT8E-6P-DS has a IP67 rating, which means it can withstand temporary immersion in water up to 1 meter for 30 minutes. However, it's not recommended for continuous use in humid or wet environments without additional protection.
  • The GT8E-6P-DS has a mating cycle life of 500 cycles. This means it can be connected and disconnected up to 500 times without compromising its performance.
