GT8E-7P-2V - Hirose

Description: Automotive Connectors

Download GT8E-7P-2V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
GT8E-7P-2V - Hirose - PCB symbol
click to zoom
PCB Footprints

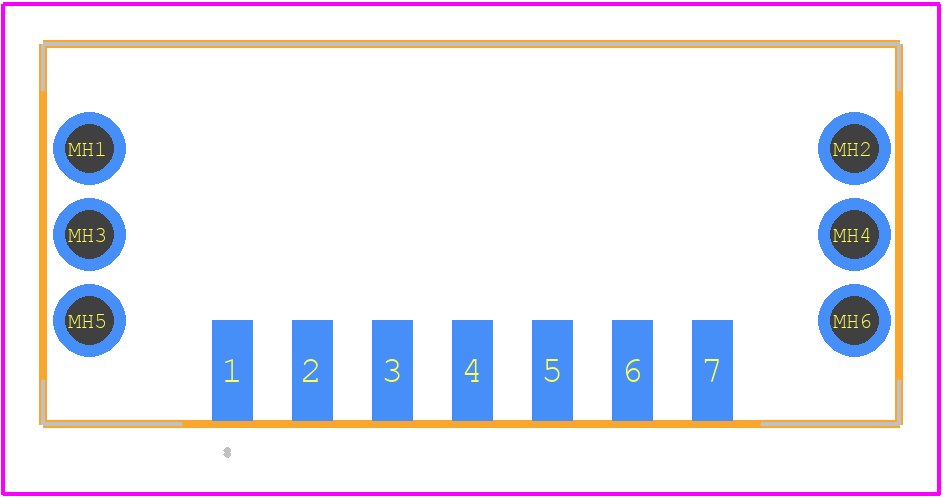

GT8E-7P-2V - Hirose PCB footprint - Other - Other - GT8E-7P-2V-2
click to zoom
3D Models
GT8E-7P-2V - Hirose - 3D model - Other - GT8E-7P-2V-2
click to zoom

GT8E-7P-2V Details

  • Manufacturer Part Number:

    GT8E-7P-2V

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.51

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    0

  • Board Mounting Option:

    SOLDER HOLDING POSTS

  • Body Breadth:

    0.374 inch

  • Body Depth:

    0.472 inch

  • Body Length:

    0.843 inch

  • Connector Type:

    DIP CONNECTOR

  • Contact Arrangement:

    S7P0

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • Durability:

    30 Cycles

  • Filter Feature:

    NO

  • Mating Contact Pitch:

    0.079 inch

  • Mixed Contacts:

    NO

  • Mounting Option 2:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Terminal Pitch:

    2 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    7

GT8E-7P-2V Frequently Asked Questions (FAQs)

  • The recommended mating sequence is to mate the guide pins first, followed by the signal contacts. This ensures proper alignment and prevents damage to the connector.
  • To ensure reliable connections, make sure to follow the recommended mating and unmating forces, and keep the connector clean and free of contaminants. Also, use the correct torque specification for the screw locks.
  • The operating temperature range for the GT8E-7P-2V connector is -40°C to 105°C. However, it's essential to note that the temperature range may vary depending on the specific application and environment.
  • Yes, the GT8E-7P-2V connector is designed to withstand high-vibration environments. However, it's crucial to follow the recommended mounting and screw torque specifications to ensure reliable connections.
  • The typical lead time for ordering GT8E-7P-2V connectors can vary depending on the supplier, quantity, and location. However, it's usually around 6-12 weeks. It's recommended to check with the supplier or distributor for the most up-to-date lead time information.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

GT8E-7P-2V Overview

Use the download button to access the GT8E-7P-2V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like GT8E-, or try a keyword search, such as Headers and Edge Type Connectors
