GV7704-IBE3 - SEMTECH

Description: Quad channel serial digital video receiver

Download GV7704-IBE3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
GV7704-IBE3 - SEMTECH - PCB symbol
click to zoom
PCB Footprints

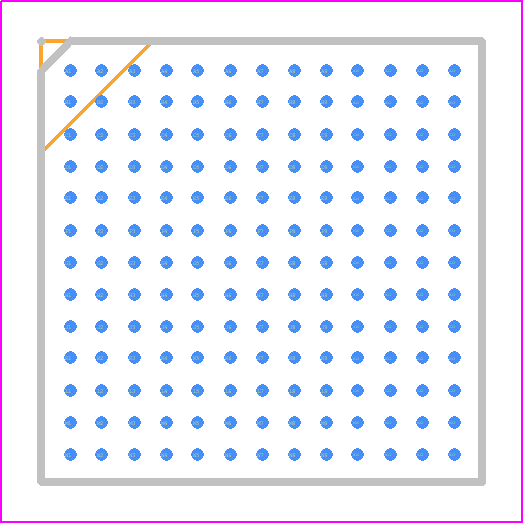

GV7704-IBE3 - SEMTECH PCB footprint - BGA - BGA - GV7704-IBE3
click to zoom
3D Models
GV7704-IBE3 - SEMTECH - 3D model - BGA - GV7704-IBE3
click to zoom

GV7704-IBE3 Details

  • Manufacturer Part Number:

    GV7704-IBE3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-169

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Semtech Corporation

  • Additional Feature:

    IT ALSO OPERATES AT 1.8V

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PBGA-B169

  • JESD-609 Code:

    e1

  • Length:

    11 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    169

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.83 mm

  • Supply Voltage-Max (Vsup):

    1.26 V

  • Supply Voltage-Min (Vsup):

    1.14 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    TIN SILVER COPPER

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    11 mm

GV7704-IBE3 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a thermal pad connected to a heat sink is recommended. Ensure a minimum of 1mm clearance around the device for airflow and heat dissipation.
  • Use a pi-network or a T-network topology for input impedance matching. The optimal component values can be calculated using simulation tools or impedance matching software.
  • The recommended input signal amplitude is 50-100 mVpp, and the frequency range is 50-1000 MHz. Ensure the input signal is within the specified range for optimal performance and to prevent damage to the device.
  • Use a metal shield or a Faraday cage to enclose the device, and ensure proper grounding and decoupling of the power supply. Follow good EMC design practices, such as using a common mode choke and a ferrite bead in the power supply lines.
  • The recommended operating temperature range is -40°C to 85°C. Ensure proper thermal management and heat dissipation to prevent overheating and ensure reliable operation.
