Part Image

H11AA1M - onsemi

Description: VDE approved File #102497 (ordering option ‘V’); Built-in reverse polarity input protection; Underwriters Laboratory (UL) recognized File#E90700, Volume 2; Bi-polar emitter input

Download H11AA1M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

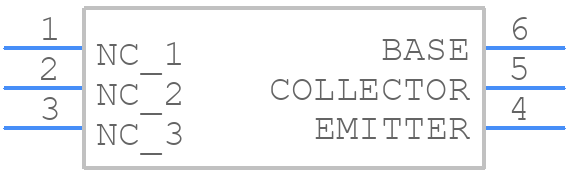

Symbol
H11AA1M - onsemi - PCB symbol
click to zoom
PCB Footprints
H11AA1M - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - H11AA1M
click to zoom
3D Models
H11AA1M - onsemi - 3D model - Dual-In-Line Packages - H11AA1M
click to zoom

H11AA1M Details

  • Manufacturer Part Number:

    H11AA1M

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-6

  • Package Description:

    DIP-6

  • Manufacturer Package Code:

    646BX

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Additional Feature:

    UL RECOGNIZED

  • Coll-Emtr Bkdn Voltage-Min:

    30 V

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    20%

  • Current Transfer Ratio-Nom:

    20%

  • Dark Current-Max:

    50 nA

  • Forward Current-Max:

    0.06 A

  • Forward Voltage-Max:

    1.5 V

  • Isolation Voltage-Max:

    7500 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    0.05 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER

  • Packing Method:

    TUBE

  • Power Dissipation-Max:

    0.15 W

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn) - annealed

H11AA1M Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the H11AA1M is -40°C to 100°C.
  • To ensure reliability in high-temperature applications, it is recommended to derate the device's current and voltage ratings according to the temperature derating curve provided in the datasheet.
  • The maximum allowable voltage for the H11AA1M is 80V, but it is recommended to operate the device at a voltage below 60V to ensure reliable operation.
  • The correct resistor value for the H11AA1M depends on the specific application and the desired current transfer ratio. A general guideline is to choose a resistor value that limits the current to 10-20mA.
  • The H11AA1M is not suitable for high-frequency applications due to its limited bandwidth. For high-frequency applications, consider using a high-speed optocoupler like the FODM8071 or the ACPL-217.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

H11AA1M Overview

Use the download button to access the H11AA1M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like H11AA, or try a keyword search, such as Optocoupler
