H11AA1SM - onsemi

Description: VDE approved File #102497 (ordering option ‘V’); Built-in reverse polarity input protection; Underwriters Laboratory (UL) recognized File#E90700, Volume 2; Bi-polar emitter input

Download H11AA1SM Model

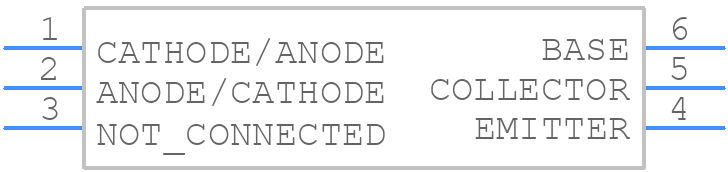

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
H11AA1SM - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - PDIP6 8.51x6.35, 2.54P CASE 646BY ISSUE A-ren1
click to zoom

H11AA1SM Details

  • Manufacturer Part Number:

    H11AA1SM

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-6

  • Package Description:

    SURFACE MOUNT PACKAGE-6

  • Manufacturer Package Code:

    646BY

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Additional Feature:

    UL RECOGNIZED

  • Coll-Emtr Bkdn Voltage-Min:

    30 V

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    20%

  • Current Transfer Ratio-Nom:

    20%

  • Dark Current-Max:

    50 nA

  • Forward Current-Max:

    0.06 A

  • Forward Voltage-Max:

    1.5 V

  • Isolation Voltage-Max:

    7500 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    0.05 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER

  • Packing Method:

    TUBE

  • Power Dissipation-Max:

    0.15 W

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

H11AA1SM Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the H11AA1SM is -40°C to 100°C.
  • To ensure reliability in high-temperature applications, it is recommended to derate the device's current and voltage ratings according to the datasheet's thermal derating curves.
  • The maximum allowable voltage for the H11AA1SM is 80V, but it is recommended to operate the device at a voltage below 60V to ensure reliable operation.
  • To choose the correct current-limiting resistor, calculate the resistor value based on the desired LED current and the voltage supply using Ohm's law (R = V / I).
  • The typical response time of the H11AA1SM is around 10-20 μs, but this can vary depending on the specific application and operating conditions.
