H11B1M - onsemi

Description: UL, C-UL approved; High sensitivity to low input drive current; Meets or exceeds all JEDEC Registered Specifications; – add option V (e.g., 4N29VM); VDE 0884 approval available as a test option

Download H11B1M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

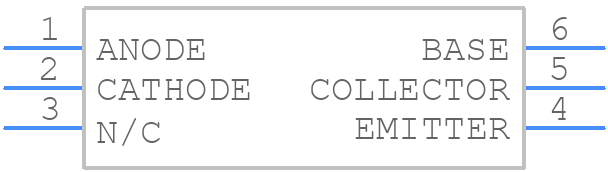

Symbol
H11B1M - onsemi - PCB symbol
click to zoom
PCB Footprints
H11B1M - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PDIP6 8.51x6.35, 2.54P CASE 646BX ISSUE O
click to zoom
3D Models
H11B1M - onsemi - 3D model - Dual-In-Line Packages - PDIP6 8.51x6.35, 2.54P CASE 646BX ISSUE O
click to zoom

H11B1M Details

  • Manufacturer Part Number:

    H11B1M

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-6

  • Manufacturer Package Code:

    646BX

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Additional Feature:

    UL APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    25 V

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    500%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.08 A

  • Forward Voltage-Max:

    1.5 V

  • Isolation Voltage-Max:

    7500 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    0.15 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    DARLINGTON OUTPUT OPTOCOUPLER

  • Packing Method:

    TUBE

  • Power Dissipation-Max:

    0.25 W

  • Response Time-Max:

    0.000005 s

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn) - annealed

H11B1M Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the H11B1M is -40°C to 100°C.
  • To ensure reliability in high-temperature applications, it is recommended to derate the device's current and voltage ratings according to the temperature derating curve provided in the datasheet.
  • The maximum allowable voltage for the H11B1M is 80V, but it is recommended to operate the device at a voltage below 60V to ensure reliable operation.
  • The correct resistor value for the H11B1M depends on the specific application and the desired current transfer ratio. A general guideline is to choose a resistor value that limits the current to 10mA or less.
  • The H11B1M is not suitable for high-frequency applications due to its limited bandwidth. For high-frequency applications, a different optocoupler with a higher bandwidth should be considered.
