H11F3M - onsemi

Description: 60 Vpk-pk signal capability; ≥ 100GΩ I/O isolation resistanceAs an analog switch: ; As a remote variable resistor: ; ≤ 15pF shunt capacitance; ≤ 100Ω to ≥ 300MΩ; UL recognized (File #E90700); No charge injection or latch-up; Extremely low offset voltage

Download H11F3M Model

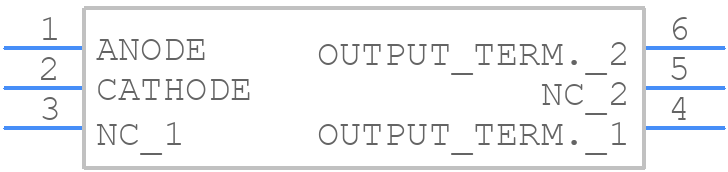

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
H11F3M - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PDIP6 8.51x6.35, 2.54P CASE 646BX ISSUE O
click to zoom
3D Models
H11F3M - onsemi  - 3D model - Dual-In-Line Packages - PDIP6 8.51x6.35, 2.54P CASE 646BX ISSUE O
click to zoom

H11F3M Details

  • Manufacturer Part Number:

    H11F3M

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-6

  • Package Description:

    DIP-6

  • Manufacturer Package Code:

    646BX

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Additional Feature:

    UL RECOGNIZED

  • Coll-Emtr Bkdn Voltage-Min:

    15 V

  • Configuration:

    SINGLE

  • Dark Current-Max:

    50 nA

  • Forward Current-Max:

    0.06 A

  • Forward Voltage-Max:

    1.75 V

  • Isolation Voltage-Max:

    7500 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    1 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    FET OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.1 W

  • Response Time-Max:

    0.000025 s

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn) - annealed

H11F3M Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the H11F3M is 3.0V to 5.5V.
  • To ensure proper biasing, connect the VCC pin to a stable voltage source, and the GND pin to a solid ground. Also, make sure to decouple the power supply with a 0.1uF capacitor.
  • The maximum current rating for the H11F3M's output pins is 20mA. Exceeding this limit may cause damage to the device.
  • To handle thermal considerations, ensure good airflow around the device, and consider using a heat sink if the device will be operating at high temperatures or high currents.
  • The recommended storage temperature range for the H11F3M is -40°C to 125°C.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

H11F3M Overview

Use the download button to access the H11F3M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like H11F3, or try a keyword search, such as Optocoupler
