H11G3 - onsemi

Description: 6-Pin Optoisolator with Darlington Output and on-chip resistors. High voltage isolation, CTR = 200% Min, low leakage.

Download H11G3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

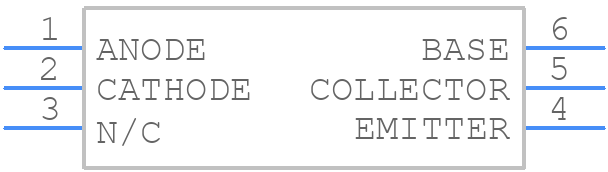

H11G3 - onsemi - PCB symbol
click to zoom
PCB Footprints
H11G3 - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 6-Pin DIP Thru Hole Case 730A-04
click to zoom
3D Models
H11G3 - onsemi - 3D model - Dual-In-Line Packages - 6-Pin DIP Thru Hole Case 730A-04
click to zoom

H11G3 Details

  • Manufacturer Part Number:

    H11G3

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    PLASTIC, DIP-6

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Additional Feature:

    UL RECOGNIZED

  • Coll-Emtr Bkdn Voltage-Min:

    55 V

  • Configuration:

    SINGLE WITH BUILT-IN DIODE AND RESISTOR

  • Current Transfer Ratio-Min:

    200%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.06 A

  • Forward Voltage-Max:

    1.5 V

  • Isolation Voltage-Max:

    7500 V

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    0.15 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    DARLINGTON OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.25 W

  • Response Time-Max:

    0.000005 s

  • Surface Mount:

    NO
