H11L1 - Everlight

Description: Logic Output Optoisolator 1MHz Open Collector 5000Vrms 1 Channel CMTI 6-DIP

Download H11L1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

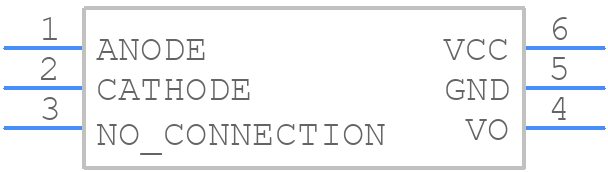

H11L1 - Everlight - PCB symbol
click to zoom
PCB Footprints
H11L1 - Everlight PCB footprint - Other - Other - 6-DIP
click to zoom
3D Models
H11L1 - Everlight - 3D model - Other - 6-DIP
click to zoom

H11L1 Details

  • Manufacturer Part Number:

    H11L1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-6

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Everlight Electronics Co Ltd

  • YTEOL:

    7

  • Additional Feature:

    UL APPROVED

  • Configuration:

    SINGLE

  • Data Rate-Nom:

    1 MBps

  • Forward Current-Max:

    0.06 A

  • Isolation Voltage-Max:

    5000 V

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.05 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Packing Method:

    TUBE

  • Response Time-Nom:

    1e-7 ns

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    NO

H11L1 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the H11L1 is -40°C to 100°C.
  • To ensure reliability in high-temperature applications, it is recommended to derate the device's current and voltage ratings according to the temperature derating curve provided in the datasheet.
  • The maximum allowable voltage for the H11L1 is 80V, but it is recommended to operate the device at a voltage below 60V to ensure reliable operation.
  • To handle ESD protection for the H11L1, it is recommended to use a wrist strap or anti-static mat when handling the device, and to ensure that the device is stored in an anti-static bag or container.
  • The recommended soldering temperature for the H11L1 is 260°C, and the recommended soldering time is 10 seconds or less.
