H11L1S(TA)-V footprint, schematic symbol and 3D model by Everlight

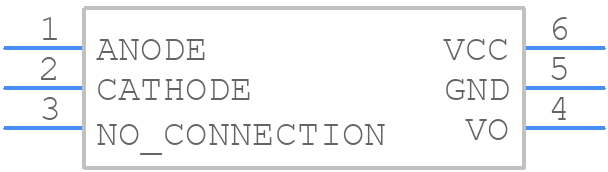

Symbol

PCB Footprints

H11L1S(TA)-V Details

The recommended operating temperature range for the H11L1S(TA)-V is -40°C to 85°C.
Handle the H11L1S(TA)-V by the edges to prevent damage to the photodiode. Avoid touching the optical surface or the leads. Use an anti-static wrist strap or mat to prevent electrostatic discharge damage.
Store the H11L1S(TA)-V in a dry, dark place at room temperature (20°C to 30°C) and humidity below 60%. Avoid exposing the device to direct sunlight or moisture.
While the H11L1S(TA)-V is not hermetically sealed, it can operate in a humid environment. However, it's recommended to take precautions to prevent moisture ingress, such as using a conformal coating or potting the device.
Use a soldering iron with a temperature below 260°C. Apply a small amount of solder to the leads, and avoid applying excessive force or bending the leads. Use a solder with a melting point below 220°C.

Community Provided

System Verified

Community Approved

Use the download button to access the H11L1S(TA)-V schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like H11L1, or try a keyword search, such as Optocoupler
