H178CBC-3-RP - Bivar

Description: LED Circuit Board Indicator LED Circuit Board Indicator Single Green, Red Diffused, White 2.2V Green, 2V Red 150mA Green, 150mA Red Round with Domed Top 5mm, T-1 3/4, -40°C to +80°C

Download H178CBC-3-RP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

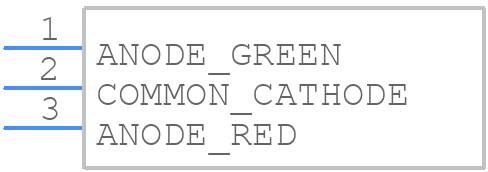

Symbol
H178CBC-3-RP - Bivar - PCB symbol
click to zoom

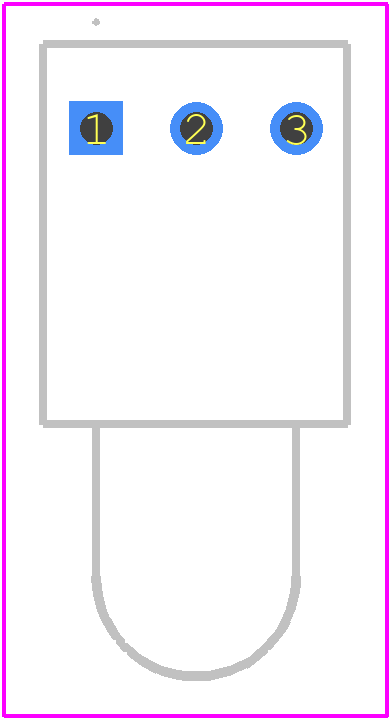

PCB Footprints
H178CBC-3-RP - Bivar PCB footprint - Other - Other - H178CBC-3-RP-2
click to zoom
3D Models
H178CBC-3-RP - Bivar - 3D model - Other - H178CBC-3-RP-2
click to zoom

H178CBC-3-RP Details

  • Manufacturer Part Number:

    H178CBC-3-RP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Bivar Inc

  • YTEOL:

    6

  • Color:

    HIGH EFFICIENCY RED/GREEN

  • Configuration:

    COMMON CATHODE, 2 ELEMENTS

  • Forward Current-Max:

    0.03 A

  • Forward Voltage-Max:

    2.6 V

  • Lens Type:

    DIFFUSED WHITE

  • Luminous Intensity-Nom:

    30.0/35.0 mcd

  • Mounting Feature:

    RADIAL MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    80 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    DUAL COLOR LED

  • Overall Height:

    7.6 mm

  • Packing Method:

    BULK

  • Peak Wavelength:

    635/568 nm

  • Reverse Voltage-Max:

    5 V

  • Shape:

    ROUND

  • Size:

    5 mm

  • Surface Mount:

    NO

  • T-code:

    T-1 3/4

  • Terminal Pitch:

    2.5 mm

  • Viewing Angle:

    45 deg

H178CBC-3-RP Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 3 seconds. It's essential to follow the recommended soldering profile to prevent damage to the component.
  • Yes, the H178CBC-3-RP is compatible with lead-free soldering processes. Bivar Inc ensures that their products meet the requirements of the RoHS (Restriction of Hazardous Substances) directive.
  • The typical MOQ for the H178CBC-3-RP is 1000 pieces. However, this may vary depending on the specific requirements and negotiations with the supplier or distributor.
  • The H178CBC-3-RP is designed to withstand moderate vibration and shock. However, for high-vibration or high-shock applications, it's recommended to consult with Bivar Inc's application engineers to determine the suitability of the component and potential modifications or custom designs.
  • The typical lead time for delivery of the H178CBC-3-RP is 6-8 weeks. However, this may vary depending on the quantity, production schedule, and availability of the component.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

H178CBC-3-RP Overview

Use the download button to access the H178CBC-3-RP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like H178C, or try a keyword search, such as Visible LEDs
