H2074Z01 - Harwin

Description: Hardware: Straight 4.34mm THT Slotted Triple Turret Lug 8.74mm high

Download H2074Z01 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
H2074Z01 - Harwin - PCB symbol
click to zoom
PCB Footprints

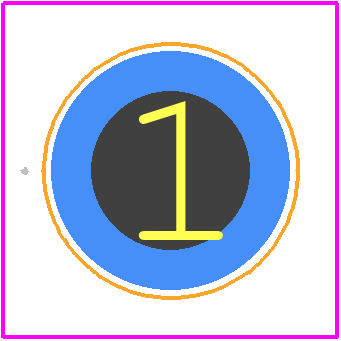

H2074Z01 - Harwin PCB footprint - Other - Other - H2074Z01-1
click to zoom
3D Models
H2074Z01 - Harwin - 3D model - Other - H2074Z01-1
click to zoom

H2074Z01 Details

  • Manufacturer Part Number:

    H2074Z01

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    UK

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Harwin

  • YTEOL:

    8

  • Terminal and Terminal Block Type:

    SLOTTED TERMINAL

H2074Z01 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type.
  • Yes, the H2074Z01 is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10G peak acceleration.
  • Yes, the H2074Z01 is designed to operate in harsh environments, with an operating temperature range of -40°C to +125°C and a humidity rating of 95% RH at 40°C.
  • The maximum wire size that can be used with the H2074Z01 is 1.5 mm² (16 AWG).
  • Yes, the H2074Z01 is suitable for power applications, with a current rating of up to 10A per contact.
