- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for H21A1
- Part Number H21A1
- Manufacturer Isocom
- Pin Count 6
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - H21A1-1
- Released Date Dec 1, 2018
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
H21A1 Details
-
Manufacturer Part Number:
H21A1
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Mainland China
-
ECCN Code:
EAR99
-
HTS Code:
8541.50.00.80
-
Manufacturer:
Isocom Components
-
YTEOL:
7
-
Coll-Emtr Bkdn Voltage-Min:
30 V
-
Configuration:
SINGLE
H21A1 Frequently Asked Questions (FAQs)
-
The recommended storage temperature range for H21A1 is -40°C to 100°C.
-
Yes, H21A1 is suitable for use in high-humidity environments, but it's essential to follow proper handling and storage procedures to prevent moisture-related issues.
-
The maximum allowable voltage for the input LED is 5V, but it's recommended to operate within the specified voltage range (1.0 to 1.4V) for optimal performance.
-
To ensure reliability in high-temperature applications, follow the recommended operating temperature range (up to 85°C), and consider derating the device according to the temperature coefficient.
-
Yes, H21A1 is suitable for high-frequency switching applications, but it's essential to consider the device's switching time and frequency limitations to avoid performance degradation.
Trust Checks
Expert Contribution
System Verified
Community Approved
H21A1 Overview

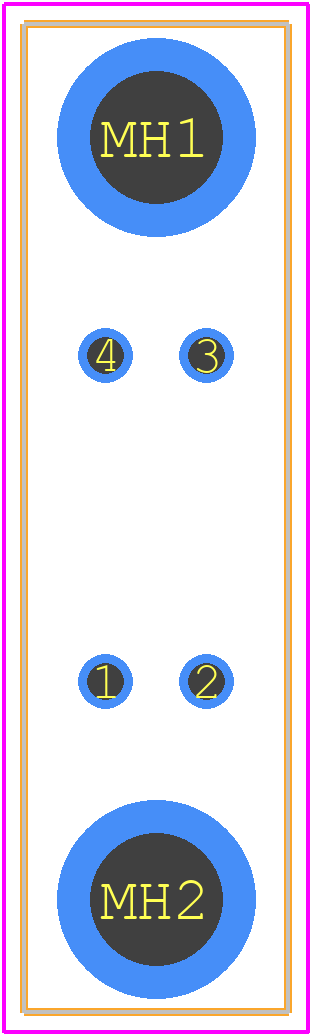

Use the download button to access the H21A1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search
or try a keyword search, such as Slotted Switch
