H26M51002KPR - Hynix

Description: BGA 153 11.5X13X08

Download H26M51002KPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

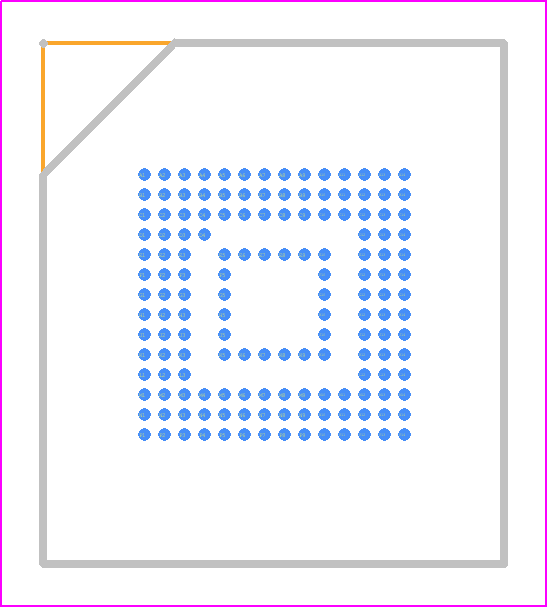

H26M51002KPR - Hynix PCB footprint - BGA - BGA - 11.5mm x13.0mm x0.8mm_2021
click to zoom

H26M51002KPR Details

  • Manufacturer Part Number:

    H26M51002KPR

  • Part Life Cycle Code:

    Active

  • Package Description:

    FBGA-153

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    SK Hynix Inc

  • YTEOL:

    8

  • Clock Frequency-Max (fCLK):

    200 MHz

  • JESD-30 Code:

    R-PBGA-B153

  • Length:

    13 mm

  • Memory Density:

    137438953472 bit

  • Memory IC Type:

    eMMC

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    153

  • Number of Words:

    17179869184 words

  • Number of Words Code:

    16000000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    16GX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA153,14X14,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3.3 V

  • Seated Height-Max:

    0.8 mm

  • Serial Bus Type:

    EMMC 5.1

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Type:

    NAND TYPE

  • Width:

    11.5 mm

  • Write Protection:

    SOFTWARE
