H27U1G8F2BTR-BC - Hynix

Description: HYNIX SEMICONDUCTOR - H27U1G8F2BTR-BC - IC, MEMORY, FLASH NAND 1GB, TSOP48

Download H27U1G8F2BTR-BC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

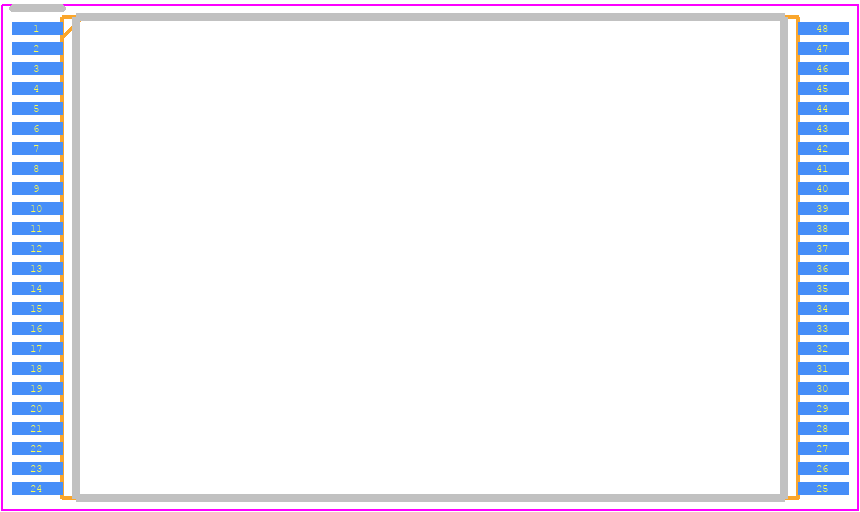

H27U1G8F2BTR-BC - Hynix PCB footprint - Small Outline Packages - Small Outline Packages - 48-TSOP1 - 12 x 20mm
click to zoom
3D Models
H27U1G8F2BTR-BC - Hynix  - 3D model - Small Outline Packages - 48-TSOP1 - 12 x 20mm
click to zoom

H27U1G8F2BTR-BC Details

  • Manufacturer Part Number:

    H27U1G8F2BTR-BC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    SK Hynix Inc

  • YTEOL:

    0

  • Access Time-Max:

    20 ns

  • Command User Interface:

    YES

  • Data Polling:

    NO

  • JESD-30 Code:

    R-PDSO-G48

  • Memory Density:

    1073741824 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Sectors/Size:

    1K

  • Number of Terminals:

    48

  • Number of Words:

    134217728 words

  • Number of Words Code:

    128000000

  • Operating Temperature-Max:

    70 °C

  • Organization:

    128MX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP48,.8,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Page Size:

    2K words

  • Parallel/Serial:

    PARALLEL

  • Qualification Status:

    Not Qualified

  • Ready/Busy:

    YES

  • Sector Size:

    128K

  • Standby Current-Max:

    0.00005 A

  • Supply Current-Max:

    0.03 mA

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Toggle Bit:

    NO

  • Type:

    SLC NAND TYPE

H27U1G8F2BTR-BC Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the H27U1G8F2BTR-BC is 0°C to 95°C.
  • To ensure data integrity, it is recommended to follow the power-up and power-down sequences outlined in the datasheet, and to use a voltage regulator to ensure a stable power supply.
  • The recommended refresh rate for the H27U1G8F2BTR-BC is 4,096 refresh cycles every 64ms, as specified in the JEDEC standard.
  • The H27U1G8F2BTR-BC is designed to operate at a voltage supply of 1.2V, but it can also operate at a voltage supply of 1.35V with some performance degradation. However, it is not recommended to use this chip with a voltage supply outside of the specified range.
  • The H27U1G8F2BTR-BC has built-in error correction mechanisms, such as ECC (Error-Correcting Code) and parity bits. It is recommended to implement additional error handling mechanisms in the system design to handle exceptions and errors during memory access.
