H27UAG8T2BTR-BC - Hynix

Description: HYNIX SEMICONDUCTOR - H27UAG8T2BTR-BC - FLASH, NAND 16GB (X8), TSOP

Download H27UAG8T2BTR-BC Model

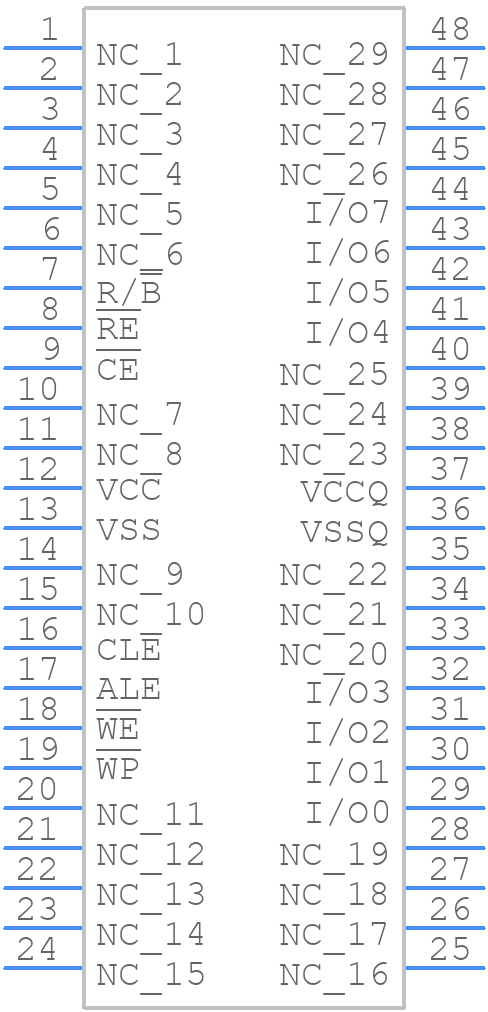

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

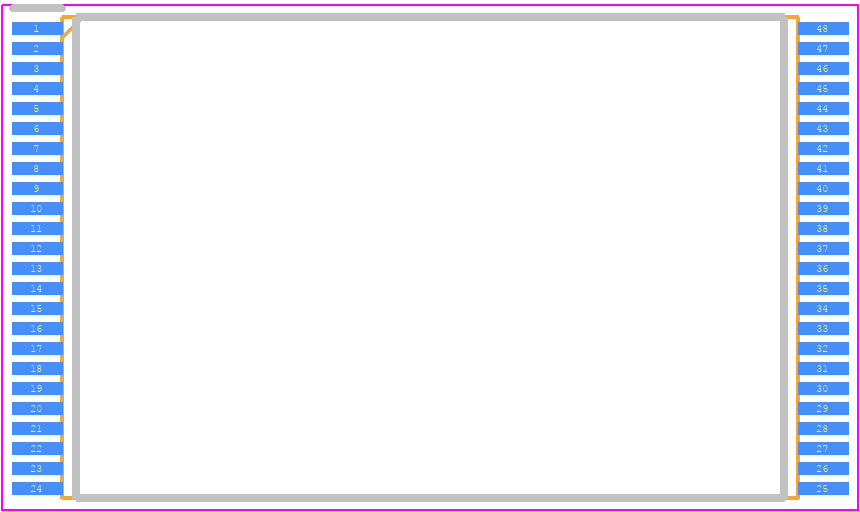

PCB Footprints
H27UAG8T2BTR-BC - Hynix PCB footprint - Small Outline Packages - Small Outline Packages - H27UAG8T2BTR-BC-1
click to zoom
3D Models
H27UAG8T2BTR-BC - Hynix  - 3D model - Small Outline Packages - H27UAG8T2BTR-BC-1
click to zoom

H27UAG8T2BTR-BC Details

  • Manufacturer Part Number:

    H27UAG8T2BTR-BC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active Unconfirmed

  • Part Package Code:

    TSOP1

  • Package Description:

    12 X 20 MM, PLASTIC, TSOP1-48

  • Pin Count:

    48

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    SK Hynix Inc

  • YTEOL:

    2

  • JESD-30 Code:

    R-PDSO-G48

  • Length:

    18.4 mm

  • Memory Density:

    17179869184 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of Words:

    2147483648 words

  • Number of Words Code:

    2000000000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    70 °C

  • Organization:

    2GX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSOP1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Programming Voltage:

    3.3 V

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Type:

    MLC NAND TYPE

  • Width:

    12 mm
