H3LIS331DLTR - STMicroelectronics

Description: Accelerometers Low Pwr Hi G 3-axis Digital Acceleromtr

Download H3LIS331DLTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

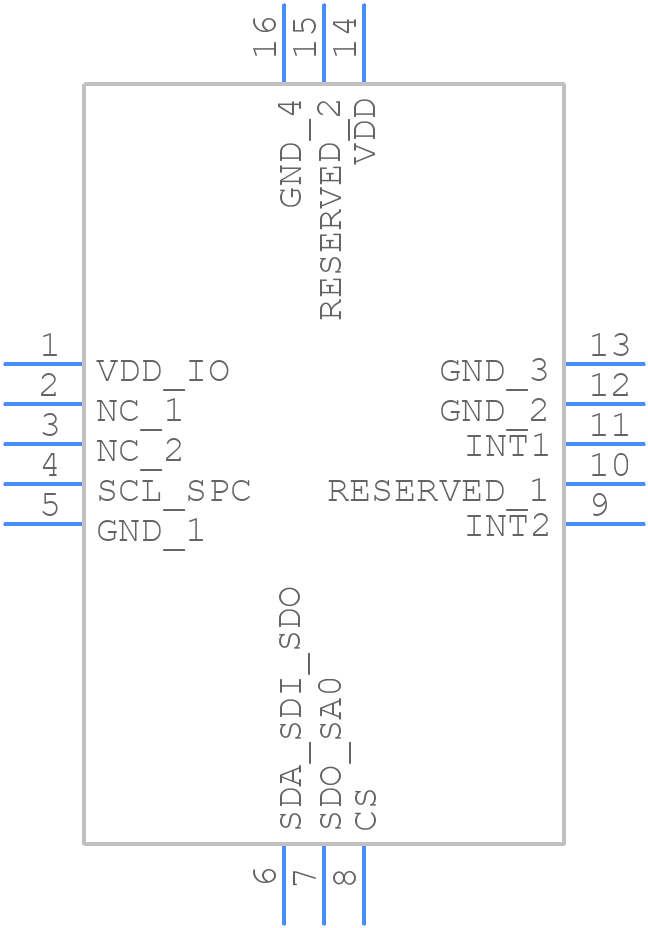

Symbol
H3LIS331DLTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
H3LIS331DLTR - STMicroelectronics PCB footprint - Other - Other - LGA-16_2
click to zoom
3D Models
H3LIS331DLTR - STMicroelectronics - 3D model - Other - LGA-16_2
click to zoom

H3LIS331DLTR Details

  • Manufacturer Part Number:

    H3LIS331DLTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TFLGA-16

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    STMicroelectronics

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PBGA-B16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFLGA

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.16 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Gold (Ni/Au) - electrolytic

  • Terminal Form:

    BUTT

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Width:

    3 mm

H3LIS331DLTR Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VDDIO before VDD. This ensures that the internal voltage regulators are properly powered up.
  • To configure the H3LIS331DLTR for low-power mode, set the LPEN bit in the CTRL_REG1 register to 1. This reduces the current consumption to approximately 10 μA.
  • The maximum acceleration range of the H3LIS331DLTR is ±100g. However, the device can be configured to measure accelerations up to ±400g by adjusting the FS_SEL bits in the CTRL_REG4 register.
  • The output data from the H3LIS331DLTR is a 16-bit, two's complement value representing the acceleration in each axis. The data is scaled according to the full-scale range selected by the FS_SEL bits in the CTRL_REG4 register.
  • The INT1 and INT2 pins are interrupt pins that can be configured to generate interrupts based on various events, such as data ready, overrun, or free-fall detection. These pins can be used to wake up a microcontroller from sleep mode or to trigger an interrupt service routine.
