HA1-2540-5 footprint, schematic symbol and 3D model by Renesas Electronics

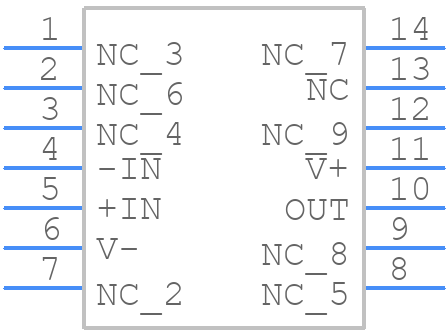

Symbol

click to zoom

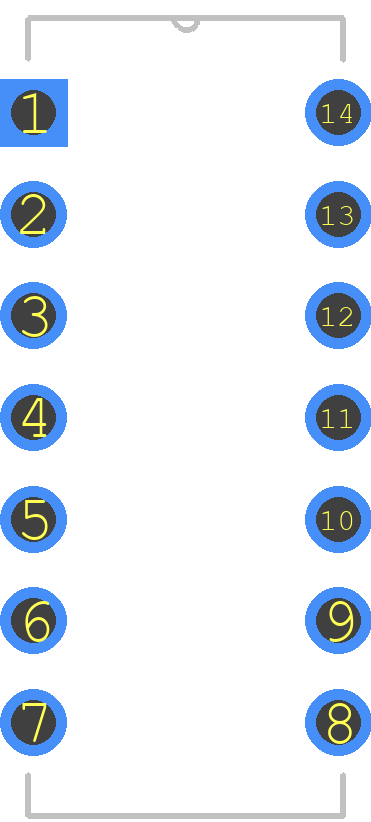

PCB Footprints

HA1-2540-5 - Renesas Electronics PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - F14.3 MIL-STD-1835 GDIP1-T14 (D-1, CONFIGURATION A)

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for HA1-2540-5
Part Number HA1-2540-5
Manufacturer Renesas Electronics
Pin Count 14
Part Category Integrated Circuit
Package Category Ceramic Dual-In-Line Packages
Footprint Name Ceramic Dual-In-Line Packages - F14.3 MIL-STD-1835 GDIP1-T14 (D-1, CONFIGURATION A)
Released Date Jan 11, 2017
Last Modified Date Jun 16, 2025 12:10 PM UTC
Pinout / Pin List Click Here (Member Only)

HA1-2540-5 Details

Manufacturer Part Number:
HA1-2540-5
Part Life Cycle Code:
Obsolete
Package Description:
DIP-14
ECCN Code:
EAR99
HTS Code:
8542.33.00.01
Manufacturer:
Renesas Electronics Corporation
YTEOL:
0
Amplifier Type:
OPERATIONAL AMPLIFIER
Architecture:
VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB):
25 µA
Bias Current-Max (IIB) @25C:
20 µA
Common-mode Reject Ratio-Min:
60 dB
Common-mode Reject Ratio-Nom:
72 dB
Frequency Compensation:
NO
Input Offset Current-Max (IIO):
8 µA
Input Offset Voltage-Max:
20000 µV
JESD-30 Code:
R-CDIP-T14
Length:
19.94 mm
Low-Bias:
YES
Low-Offset:
NO
Micropower:
NO
Neg Supply Voltage Limit-Max:
-17.5 V
Neg Supply Voltage-Nom (Vsup):
-15 V
Number of Functions:
1
Number of Terminals:
14
Operating Temperature-Max:
70 °C
Package Body Material:
CERAMIC
Package Code:
DIP
Package Equivalence Code:
DIP14,.3
Package Shape:
RECTANGULAR
Package Style:
IN-LINE
Power:
NO
Programmable Power:
NO
Seated Height-Max:
5.08 mm
Slew Rate-Min:
320 V/us
Slew Rate-Nom:
400 V/us
Supply Current-Max:
25 mA
Supply Voltage Limit-Max:
17.5 V
Supply Voltage-Nom (Vsup):
15 V
Surface Mount:
NO
Technology:
BIPOLAR
Temperature Grade:
COMMERCIAL
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Unity Gain BW-Nom:
400000
Voltage Gain-Min:
10
Wideband:
NO
Width:
7.62 mm
