HA1-5104/883 - Renesas Electronics

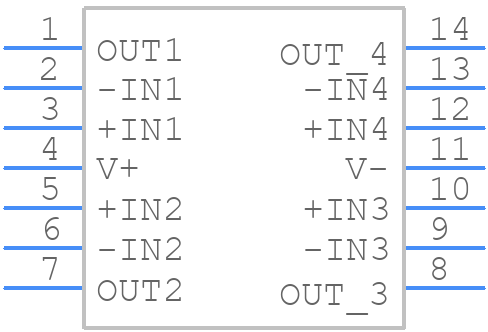

HA1-5104/883 Details

• Manufacturer Part Number:

  HA1-5104/883

• Brand Name:

  Renesas

• Pbfree Code:

  No

• Part Life Cycle Code:

  Active

• Part Package Code:

  CERDIP

• Package Description:

  DIP-14

• Pin Count:

  14

• Manufacturer Package Code:

  F14.3

• Country Of Origin:

  Philippines, Thailand

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Factory Lead Time:

  18 Weeks

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  4.5

• Amplifier Type:

  OPERATIONAL AMPLIFIER

• Architecture:

  VOLTAGE-FEEDBACK

• Average Bias Current-Max (IIB):

  0.2 µA

• Bias Current-Max (IIB) @25C:

  0.2 µA

• Common-mode Reject Ratio-Min:

  86 dB

• Common-mode Reject Ratio-Nom:

  100 dB

• Frequency Compensation:

  NO

• Input Offset Voltage-Max:

  2500 µV

• JESD-30 Code:

  R-GDIP-T14

• JESD-609 Code:

  e0

• Length:

  19.3 mm

• Low-Bias:

  NO

• Low-Offset:

  NO

• Micropower:

  NO

• Neg Supply Voltage Limit-Max:

  -20 V

• Neg Supply Voltage-Nom (Vsup):

  -15 V

• Number of Functions:

  4

• Number of Terminals:

  14

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Package Body Material:

  CERAMIC, GLASS-SEALED

• Package Code:

  DIP

• Package Equivalence Code:

  DIP14,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Packing Method:

  TUBE

• Power:

  NO

• Programmable Power:

  NO

• Qualification Status:

  Not Qualified

• Screening Level:

  MIL-STD-883 Class B

• Seated Height-Max:

  5.08 mm

• Slew Rate-Min:

  1 V/us

• Slew Rate-Nom:

  3 V/us

• Supply Current-Max:

  7.5 mA

• Supply Voltage Limit-Max:

  20 V

• Supply Voltage-Nom (Vsup):

  15 V

• Surface Mount:

  NO

• Technology:

  BIPOLAR

• Temperature Grade:

  MILITARY

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Unity Gain BW-Nom:

  8000

• Voltage Gain-Min:

  100000

• Wideband:

  NO

• Width:

  7.62 mm
