HA3802-BLD - COILCRAFT

Description: Audio Transformers / Signal Transformers HA3802 Flyback For TI TPS23753

Download HA3802-BLD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

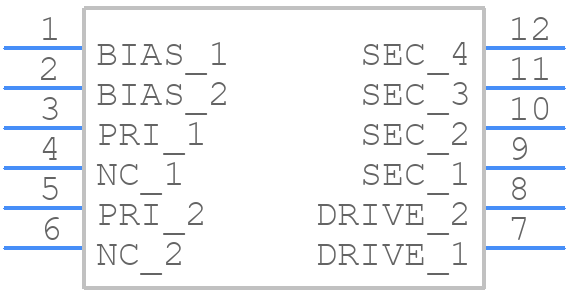

Symbol
HA3802-BLD - COILCRAFT - PCB symbol
click to zoom

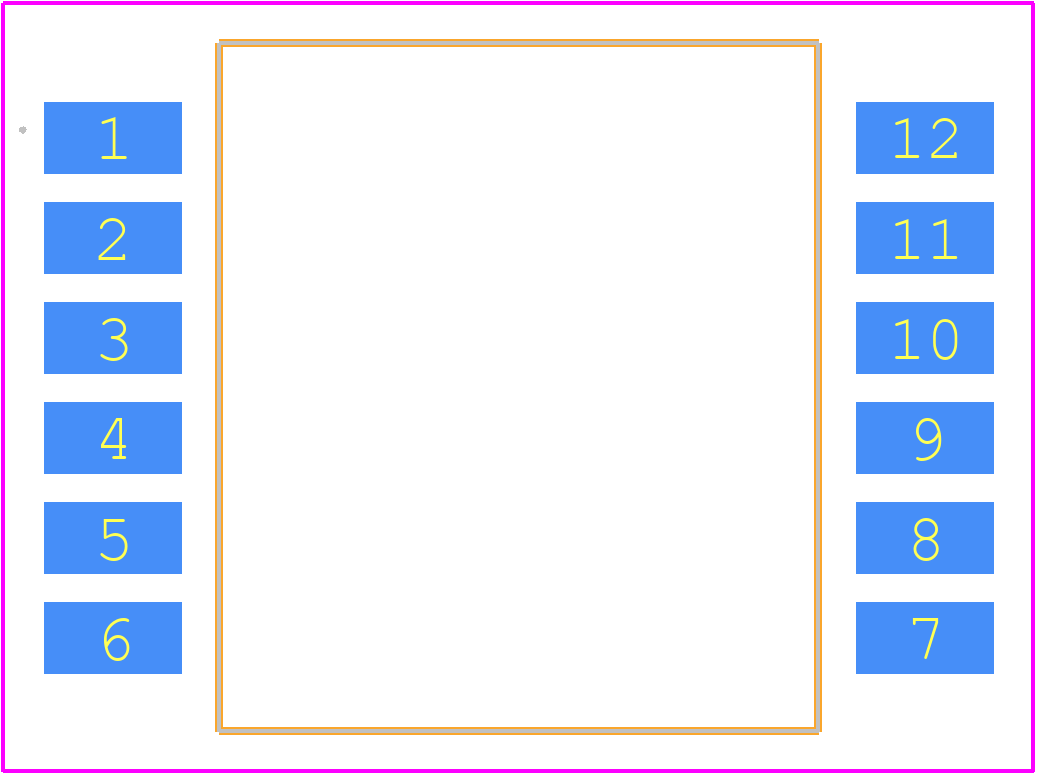

PCB Footprints
HA3802-BLD - COILCRAFT PCB footprint - Other - Other - HA3802-BLD-2
click to zoom

HA3802-BLD Details

  • Manufacturer Part Number:

    HA3802-BLD

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    6.63

  • Additional Feature:

    DIMENSION INCLUDES TERMINAL HEIGHT ALSO, SECONDARY WINDINGS ARE PARALLEL CONNECTED

  • Height:

    8.626 mm

  • Input Voltage-Max:

    57 V

  • Input Voltage-Min:

    36 V

  • Length:

    17.2 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage 1:

    5 V

  • Packing Method:

    TR, EMBOSSED PLASTIC, 13 INCH

  • Power Rating:

    10 W

  • Primary Inductance:

    150 µH

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver - Tin - with Nickel barrier

  • Transformer Type:

    SMPS TRANSFORMER

  • Width:

    14.98 mm

HA3802-BLD Frequently Asked Questions (FAQs)

  • Coilcraft provides a recommended PCB land pattern in their datasheet, but it's also available on their website as a separate document. The pattern is designed to minimize thermal resistance and ensure reliable soldering.
  • The HA3802-BLD is a molded inductor, which makes it sensitive to moisture. To minimize the risk of moisture-related failures, store the components in a dry environment, and follow the recommended soldering profile to prevent moisture ingress during reflow.
  • While the datasheet specifies a maximum current rating, it doesn't explicitly state a maximum voltage rating. However, Coilcraft recommends derating the voltage to ensure reliable operation. A general rule of thumb is to limit the voltage to 80% of the maximum rated voltage to account for voltage spikes and transients.
  • The HA3802-BLD is rated for operation up to 125°C, but its performance may degrade at higher temperatures. If your application requires operation above 125°C, consider using a high-temperature version of the inductor or consulting with Coilcraft's application engineers for guidance.
  • Coilcraft provides EMI shielding options for the HA3802-BLD. Consult with their application engineers to determine the best shielding option for your specific application. Additionally, ensure proper PCB layout and grounding practices to minimize EMI radiation.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HA3802-BLD Overview

Use the download button to access the HA3802-BLD schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like HA380, or try a keyword search, such as SMPS Transformers

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
