HA9P5104-9 - Renesas Electronics

Description: Operational Amplifiers - Op Amps

Download HA9P5104-9 Model

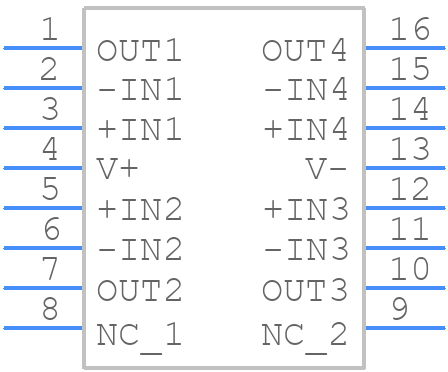

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HA9P5104-9 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 16 LEAD WIDE BODY SMALL OUTLINE
click to zoom
3D Models
HA9P5104-9 - Renesas Electronics  - 3D model - Small Outline Packages - 16 LEAD WIDE BODY SMALL OUTLINE
click to zoom

HA9P5104-9 Details

  • Manufacturer Part Number:

    HA9P5104-9

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOIC-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.5 µA

  • Bias Current-Max (IIB) @25C:

    0.2 µA

  • Common-mode Reject Ratio-Min:

    80 dB

  • Common-mode Reject Ratio-Nom:

    95 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    3000 µV

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    10.3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Neg Supply Voltage Limit-Max:

    -20 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    2.65 mm

  • Slew Rate-Min:

    1 V/us

  • Slew Rate-Nom:

    3 V/us

  • Supply Current-Max:

    6.5 mA

  • Supply Voltage Limit-Max:

    20 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    8000

  • Voltage Gain-Min:

    80000

  • Wideband:

    NO

  • Width:

    7.5 mm
