HAT2088R-EL-E - Renesas Electronics

HAT2088R-EL-E Details

• Manufacturer Part Number:

  HAT2088R-EL-E

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SOP

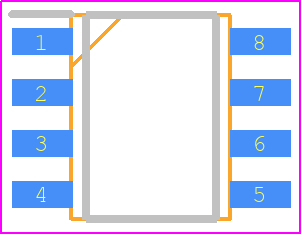

• Package Description:

  3.95 X 4.9 MM, PLASTIC, FP-8DAV, SOP-8

• Pin Count:

  8

• Manufacturer Package Code:

  PRSP0008DD

• ECCN Code:

  EAR99

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Configuration:

  SINGLE WITH BUILT-IN DIODE

• DS Breakdown Voltage-Min:

  200 V

• Drain Current-Max (ID):

  2 A

• Drain-source On Resistance-Max:

  0.44 Ω

• FET Technology:

  METAL-OXIDE SEMICONDUCTOR

• JESD-30 Code:

  R-PDSO-G8

• Moisture Sensitivity Level:

  1

• Number of Elements:

  1

• Number of Terminals:

  8

• Operating Mode:

  ENHANCEMENT MODE

• Operating Temperature-Max:

  150 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Packing Method:

  TR, EMBOSSED

• Peak Reflow Temperature (Cel):

  260

• Polarity/Channel Type:

  N-CHANNEL

• Power Dissipation-Max (Abs):

  2.5 W

• Qualification Status:

  Not Qualified

• Surface Mount:

  YES

• Terminal Form:

  GULL WING

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  20

• Transistor Application:

  SWITCHING

• Transistor Element Material:

  SILICON
